Description: The M28C64 devices consist of 8192x8 bits of low power, parallel EEPROM, fabricated with STMicroelectr...
- Table of contents:
M28C64
-
Suppliers
DataSheet
General Description
M28C64 General Description
The M28C64 devices consist of 8192x8 bits of low power, parallel EEPROM, fabricated with STMicroelectronics' proprietary single polysilicon CMOS technology. The devices offer fast access time, with low power dissipation, and require a single voltage supply (5V or 3V, depending on the option chosen).
The device has been designed to offer a flexible microcontroller interface, featuring both hardware and software handshaking, with Ready/Busy, Data Polling and Toggle Bit. The device supports a 64 byte Page Write operation. Software Data Protection (SDP) is also supported, using the standard JEDEC algorithm.
M28C64 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature | -40 to 125 | °C |
| TSTG | Storage Temperature | -65 to 150 | °C |
| VCC | Supply Voltage | -0.3 to VCC+1 | V |
| VIO | Input or Output Voltage | -0.6 to VCC+0.6 | V |
| VI | Input Voltage | -0.3 to 6.5 | V |
| VESD | Electrostatic Discharge Voltage (Human Body model) 2 | 4000 | V |
cause permanent damage to the device. These are stress ratings only, and operation of the device at these or any other conditions
above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions
for extended periods may affect device reliability. Refer also to the ST SURE Program and other relevant quality documents.
2. MIL-STD-883C, 3015.7 (100 pF, 1500 W)
M28C64 Features
` Fast Access Time:
90 nsatVCC=5 V forM28C64 and M28C64-A
120 ns at VCC=3 V for M28C64-xxW
` Single Supply Voltage:
4.5 V to 5.5 V for M28C64 and M28C64-A
2.7 V to 3.6 V for M28C64-xxW
` Low Power Consumption
` Fast BYTE and PAGE WRITE (up to 64 Bytes)
1 ms at VCC=4.5 V for M28C64-A
3 ms at VCC=4.5 V for M28C64
5 ms at VCC=2.7 V for M28C64-xxW
` Enhanced Write Detection and Monitoring:
Ready/Busy Open Drain Output
Data Polling
Toggle Bit
Page Load Timer Status
` JEDEC Approved Bytewide Pin-Out
` Software Data Protection
` 100000 Erase/Write Cycles (minimum)
` Data Retention (minimum):
40 Years for M28C64 and M28C64-xxW
10 Years for M28C64-A
90 nsatVCC=5 V forM28C64 and M28C64-A
120 ns at VCC=3 V for M28C64-xxW
` Single Supply Voltage:
4.5 V to 5.5 V for M28C64 and M28C64-A
2.7 V to 3.6 V for M28C64-xxW
` Low Power Consumption
` Fast BYTE and PAGE WRITE (up to 64 Bytes)
1 ms at VCC=4.5 V for M28C64-A
3 ms at VCC=4.5 V for M28C64
5 ms at VCC=2.7 V for M28C64-xxW
` Enhanced Write Detection and Monitoring:
Ready/Busy Open Drain Output
Data Polling
Toggle Bit
Page Load Timer Status
` JEDEC Approved Bytewide Pin-Out
` Software Data Protection
` 100000 Erase/Write Cycles (minimum)
` Data Retention (minimum):
40 Years for M28C64 and M28C64-xxW
10 Years for M28C64-A

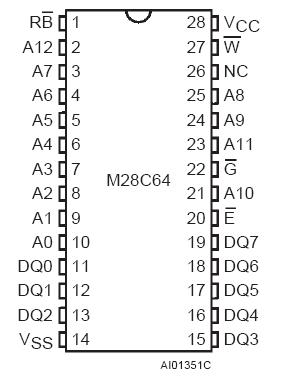

M28C64 Connection Diagram
