M295V512B70K1T

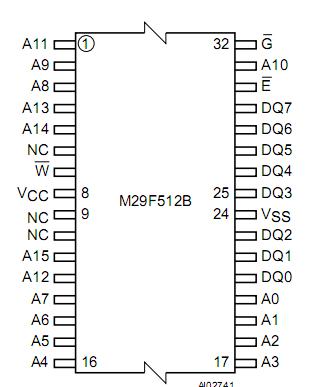

Pinout




Specifications

Symbol	Parameter	Value	Unit
TA	Ambient Operating Temperature	0 to 70	°C
TBIAS	Temperature Under Bias	50 to 125	°C
TSTG	Storage Temperature	65 to 150	°C
VIO (2)	Input or Output Voltage	0.6 to 6	V
VCC	Supply Voltage	0.6 to 6	V
VID	Identification Voltage	0.6 to 13.5	V

Description

The M295V512B70K1T is a 512 Kbit (64Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM.

Program and Erase commands M295V512B70K1T are written to the Command Interface of the memory. An on-chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are re-quired to update the memory contents. The end of a program or erase operation can be detected and any error conditions identified. The command set required to control the memory is consistent with JEDEC standards.
