Part Number: M29F002B
Description: The M29F002 is a non-volatile memory that may be erased electrically at the block or chip level and pr...
- Table of contents:
M29F002B
-
Suppliers
DataSheet
General Description
M29F002B General Description
The M29F002 is a non-volatile memory that may be erased electrically at the block or chip level and programmed in-system on a Byte-by-Byte basis usingonly a single5VVCC supply.For Programand Erase operations the necessary high voltages are generated internally. The device can also be programmed in standard programmers.
The array matrix organisation allows each block to be erased and reprogrammed without affecting other blocks. Blocks can be protected against programing and erase on programming equipment, and temporarily unprotected to make changes in the application. Each block can be programmed and erased over 100,000 cycles.
M29F002B Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature (3) |
40 to 125 |
°C |
|
TBIAS |
Temperature Under Bias |
50 to 125 |
°C |
|
TSTG |
Storage Temperature |
65 to 150 |
°C |
|
VIO(2) |
Input or Output Voltages |
0.6 to 7 |
V |
|
VCC |
Supply Voltage |
0.6 to 7 |
V |
|
V(A9, E, G, RP)(2) |
A9, E, G,RP Voltage |
0.6 to 13.5 |
V |

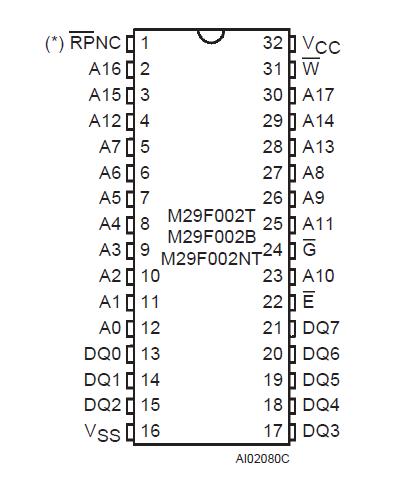

M29F002B Connection Diagram
M29F002B
PDF/DataSheet Download
- Datasheet: M29F002B
- File Size: 200998 KB
- Manufacturer: STMicro
- Click here to Download
