General Description
M2 Series (F150) General Description
The M2 series (F150) of VCO (Voltage Controlled Oscillator) apply to the frequency range 6 MHz to 30 MHz.
These VCOs have a high stability and wide controllable frequency ranges using a LiTaO3 piezoelectric single crystal with high electromechanical coupling coefficient. Output level applies to CMOS type for digital interface.
M2 Series (F150) Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min. | Max. | |||
| Supply voltage | VCC | 0.5 | +7.0 | V |
| Control voltage | VIN | 0.5 | +7.0 | V |
| Output voltage | VOUT | 0.5 | VCC +0.5 | V |
| Output current | IOUT | 25 | +25 | mA |
| Operating temperature | Ta | 10 | +70 | °C |
| Storage temperature | Tstg | 40 | +100 | °C |
WARNING: Piezoelectric devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
M2 Series (F150) Features
• Wide frequency controllable range (Over than ±2000 ppm)
• High carrier noise ratio
• Excellent temperature stability
• CMOS output level
• Compact package (8 mm × 11 mm × 2.6 mm)
• Surface mountable package (SMD)
• High carrier noise ratio
• Excellent temperature stability
• CMOS output level
• Compact package (8 mm × 11 mm × 2.6 mm)
• Surface mountable package (SMD)

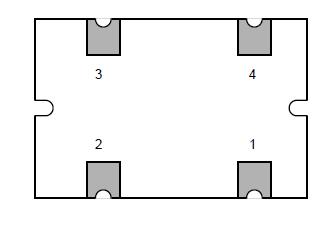

M2 Series (F150) Connection Diagram
M2 Series (F150)
PDF/DataSheet Download
- Datasheet: M2 Series (F150)
- File Size: 83779 KB
- Manufacturer: Fujitsu
- Click here to Download
