Part Number: M30102
Description: The M16C/10 group (M30100 and M30102 groups) consist of single-chip microcomputers that use highperfor...
- Table of contents:
M30102
-
Suppliers
DataSheet
General Description
M30102 General Description
The M16C/10 group (M30100 and M30102 groups) consist of single-chip microcomputers that use highperformance
silicon gate CMOS processes and have a on-chip M16C/60 series CPU core. The microcomputers re housed in 32-pin plastic mold QFP or 48-pin plastic mold QFP packages. These single-chip icrocomputers have both high function instructions and high instruction efficiency and feature a onemegabyte ddress space and the capability to execute instructions at high speed.
The M30100 and M30102 groups consist of several products that have different on-chip memory types, izes, and packages.
M30102 Maximum Ratings
|
Symbol |
Parameter |
Condition |
Rated Value |
Unit | |
| VCC | Supply voltage |
-0.3 to 6.5 |
V | ||
| VI | Input voltage | RESET, VREF, XIN P00 to P07, P10 to P17, P20, P21, P30 to P37, P40 to P47, CNVss |
- 0.3 to Vcc + 0.3 |
V | |
| VO | Output voltage | P00 to P07, P10 to P17, P20, P21,P30 to P37,P40 to P47,XOUT |
- 0.3 to Vcc + 0.3 |
V | |
| IVCC |
-0.3 to 3.6V |
V | |||
| Pd | Power Dissipation |
Ta=25 |
300 |
mW | |
| Topr | Operating ambient temperature |
- 20 to 85 (Note 1) |
|||
| Tstg | Storage Temperature |
- 40 to 150 (Note 2) |
|||
Note 1: Extended operating temperature version: -40 to 85 . When flash memory version is program/erase
mode: 25±5 .
Specify a product of -40 to 85 to use it.
Note 2: Extended operating temperature version: -65 to 150 .
Note 3: For M30100 (32-pin version), P20, P21, P34 to P36, P40 to P44, P46 and P47 are not accessed to
external pins.
M30102 Features
• Basic machine language instructions .....Compatible with the M16C/60 series
• Memory size ..........................................ROM/RAM (See the memory expansion diagram.)
• Shortest instruction execution time ......62.5 ns (when f(XIN)=16MHz)
• Power supply voltage........................... 4.2 V to 5.5V (when f(XIN)=16MHz) .2.7 V to 5.5V (when f(XIN)=5MHz) (This is not applicable to applications for automobile use)
• Interrupts ..............................................12 internal causes, 7 external causes, 4 software causes
(including key input interrupts)
• 8-bit timers ...........................................4 with 8-bit prescaler (PWM output of Timer Y, Z: selectable)
• 16-bit timer ...........................................1 (time measurement timer)
• Serial I/O .............................................. UART or clock synchronization type x 2
• A-D converter.......................................10-bit X 12 channels (can be expanded to 14 channels)
• D-A converter.......................................1
• Watchdog timer....................................1
• Programmable I/O ports ......................34
• LED drive ports ....................................8
• Clock generation circuits ...................... 3 internal circuits
• Main clock generation circuit
An internal feedback resistor and an externally attached ceramic esonator/quartz crystal oscillator/RC oscillator.
• Sub clock generation circuit
An internal feedback resistor and an externally attached ceramic esonator/quartz crystal oscillator
• Ring oscillator
• Memory size ..........................................ROM/RAM (See the memory expansion diagram.)
• Shortest instruction execution time ......62.5 ns (when f(XIN)=16MHz)
• Power supply voltage........................... 4.2 V to 5.5V (when f(XIN)=16MHz) .2.7 V to 5.5V (when f(XIN)=5MHz) (This is not applicable to applications for automobile use)
• Interrupts ..............................................12 internal causes, 7 external causes, 4 software causes
(including key input interrupts)
• 8-bit timers ...........................................4 with 8-bit prescaler (PWM output of Timer Y, Z: selectable)
• 16-bit timer ...........................................1 (time measurement timer)
• Serial I/O .............................................. UART or clock synchronization type x 2
• A-D converter.......................................10-bit X 12 channels (can be expanded to 14 channels)
• D-A converter.......................................1
• Watchdog timer....................................1
• Programmable I/O ports ......................34
• LED drive ports ....................................8
• Clock generation circuits ...................... 3 internal circuits
• Main clock generation circuit
An internal feedback resistor and an externally attached ceramic esonator/quartz crystal oscillator/RC oscillator.
• Sub clock generation circuit
An internal feedback resistor and an externally attached ceramic esonator/quartz crystal oscillator
• Ring oscillator
M30102 Typical Application
Home appliances, office devices, audio, automobile, other

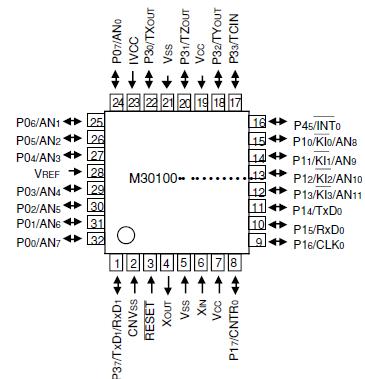

M30102 Connection Diagram
M30102
