Part Number: M30201
Description: The M30201 group of single-chip microcomputers are built using the high-performance silicon gate CMOS ...
- Table of contents:
M30201
-
Suppliers
DataSheet
General Description
M30201 General Description
The M30201 group of single-chip microcomputers are built using the high-performance silicon gate CMOS rocess using a M16C/60 Series CPU core. M30201 group is packaged in a 52-pin plastic molded SDIP, or 6-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions eaturing a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing nstructions at high speed.
The M30201 group includes a wide range of products with different internal memory types and sizes and arious package types.
M30201 Maximum Ratings
|
Symbol |
Parameter |
Condition |
Rated Value |
Unit | |
| VCC | Supply voltage |
-0.3 to 7 |
V | ||
| AVcc | Analog supply voltage |
-0.3 to 7 |
V | ||
| VI | Input voltage | RESET, CNVss, P00 to P07, P10 to P17, P30 to P35, P40 to P45, P50 to P54, P60 to P67, P70, P71, VREF, XIN |
- 0.3 to Vcc + 0.3 (Note 1) |
V | |
| VO | Output voltage | P00 to P07, P10 to P17, P30 to P35, P40 to P45,P50 to P54, P60 to P67, P70, P71, VREF, XIN |
- 0.3 to Vcc + 0.3 |
V | |
| Pd | Power Dissipation |
Ta=25 |
1000 (Note 2) |
mW | |
| Topr | Operating ambient temperature |
- 20 to 85 (Note 3) |
|||
| Tstg | Storage Temperature |
- 40 to 150 (Note 4) |
|||
Note 1: When writing to frash MCU, CNVss is 0.3 to 13 (V) .
Note 3: Extended operating temperature version: -40 to 85 .
Note 2: Flat package (56P6S-A) is 300 mW.
Note 4: Extended operating temperature version: -65 to 150 .
M30201 Features
• Basic machine instructions ..................Compatible with the M16C/60 series
• Memory capacity..................................ROM/RAM (See figure 1.4. ROM expansion.)
• Shortest instruction execution time ....100ns (f(XIN)=10MHz)
• Supply voltage ....................................4.0 to 5.5V (f(XIN)=10MHz) :mask ROM version
2.7 to 5.5V (f(XIN)=7MHz with software one-wait):mask ROM version
4.0 to 5.5V (f(XIN)=10MHz) :flash memory version
• Interrupts ...........................................9 internal and 3 external interrupt sources, 4 software
(including key input interrupt)
• Multifunction 16-bit timer ....................Timer A x 1, timer B x 2, timer X x 3
• Clock output
• Serial I/O ............................................1 channel for UART or clock synchronous, 1 for UART
• A-D converter......................................10 bits X 8 channels (Expandable up to 13 channels)
• Watchdog timer...................................1 line
• Programmable I/O ..............................43 lines
• LED drive ports ...................................8 ports
• Clock generating circuit .......................2 built-in clock generation circuits
(built-in feedback resistor, and external ceramic or quartz oscillator)
• Memory capacity..................................ROM/RAM (See figure 1.4. ROM expansion.)
• Shortest instruction execution time ....100ns (f(XIN)=10MHz)
• Supply voltage ....................................4.0 to 5.5V (f(XIN)=10MHz) :mask ROM version
2.7 to 5.5V (f(XIN)=7MHz with software one-wait):mask ROM version
4.0 to 5.5V (f(XIN)=10MHz) :flash memory version
• Interrupts ...........................................9 internal and 3 external interrupt sources, 4 software
(including key input interrupt)
• Multifunction 16-bit timer ....................Timer A x 1, timer B x 2, timer X x 3
• Clock output
• Serial I/O ............................................1 channel for UART or clock synchronous, 1 for UART
• A-D converter......................................10 bits X 8 channels (Expandable up to 13 channels)
• Watchdog timer...................................1 line
• Programmable I/O ..............................43 lines
• LED drive ports ...................................8 ports
• Clock generating circuit .......................2 built-in clock generation circuits
(built-in feedback resistor, and external ceramic or quartz oscillator)
M30201 Typical Application
Home appliances, Audio, office equipment, Automobiles

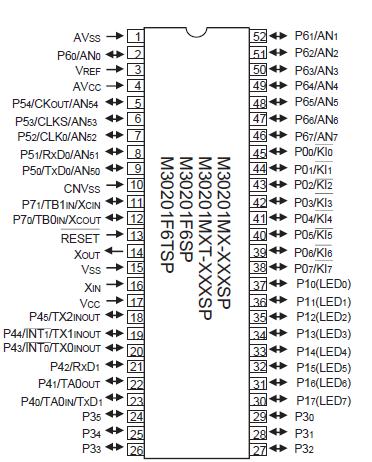

M30201 Connection Diagram
M30201
