Part Number: M30622ECTFP

MFG: MIT

Package Cooled: QFP

D/C: 2003

Description: The M16C/62T group of single-chip microcomputers are built using the high-performance silicon gate CMO...

M30622ECTFP General Description

The M16C/62T group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin or a 80-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The M16C/62T group includes a wide range of products with different internal memory types and sizes and various package types.

M30622ECTFP Maximum Ratings

Symbol	Parameter		Condition	Rated value		Unit
Symbol	Parameter		Condition	One-time PROM version	Mask ROM version	Unit
Vcc	Supply voltage		AVCC=VCC, AVSS=VSS	-0.3 to 7	-0.3 to 6.5	V
AVcc	Analog supply voltage		AVCC=VCC, AVSS=VSS	-0.3 to 7	-0.3 to 6.5	V
VI	Input voltage	RESET, VREF, XIN P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P43, P50 to P57, P60 to P67, P72 to P77, P80 to P87, P90 to P97, P100 to P107		-0.3 to Vcc+0.3	-0.3 to Vcc+0.3	V
		P70, P71		-0.3 to 7	-0.3 to 6.5	V
		CNVSS, BYTE		-0.3 to 7_{(Note 1)}	-0.3 to Vcc+0.3	V
VO	Output voltage	P00 to P07, P10 to P17, P20 to P27, P30 to P37,P40 to P43, P50 to P57, P60 to P67,P72 to P77, P80 to P84, P00 to P07, P10 to P17, P20 to P27, RESET, VREF, XIN P90 to P97, P100 to P107 P86, P87, P90 to P97, P100 to P107, XOUT		-0.3 to Vcc+0.3	-0.3 to Vcc+0.3	V
VO	Output voltage	P70, P71,		-0.3 to 7	-0.3 to 6.5	V
Pd	Power dissipation		-40°C < Ta 85°C	300	300	mW
Pd	Power dissipation		-85°C <Ta 125°C	200	200	mW
Topr	Operating ambient temperature			-40 to 125 _{(Note 2)}	-40 to 125 _{(Note 2)}	°C
Tstg	Storage temperature			-65 to 150	-65 to 150	°C

M30622ECTFP Features

• Memory capacity...M30623M4T-XXXGP : ROM 32K bytes, RAM 3K bytes
                                M30622M8T/M8V-XXXFP,M30623M8T/M8V-XXXGP : ROM 64K bytes, RAM 4K bytes
                                M30622MCT/MCV-XXXFP,M30623MCT/MCV-XXXGP : ROM 128K bytes, RAM 5K bytes
                                M30622ECT/ECV-XXXFP,M30623ECT/ECV-XXXGP   : PROM 128K bytes, RAM 5K bytes
• Shortest instruction execution time ...62.5ns (f(XIN)=16MHZ, VCC=5V)
• Supply voltage .....Mask ROM version : 4.2 to 5.5V (f(XIN)=16MHZ, without software wait)
                                One-time PROM version : 4.5 to 5.5V (f(XIN)=16MHZ, without software wait)
• Low power consumption ....140mW (VCC = 5V, f(XIN)=16MHZ)
• Interrupts ............25 internal interrupt sources, 8 external interrupt sources (M30622(100-pin package))
                                /5 sources (M30623(80-pin package)), 4 software interrupt sources,
                                7 levels (including key input interrupt)
• Multifunction 16-bit timer ....5 I/O timers + 6 input timers(M30622(100-pin package))3 I/O timers + 5 input timers(M30623(80-pin package))
• Inside 16-bit timer ....3 timers(only M30623(80-pin package))(Note 1)
• Serial I/O ..............• M30622(100-pin package) : 3 for UART or clock synchronous + 2 for synchronous
                                 • M30623(80-pin package) : 3 for UART or clock synchronous(one of exclusive UART) + 2 for synchronous(one of exclusive transmission)
• DMAC ...................2 channels (trigger: 24 sources)
• A-D converter........10 bits X 8 channels (Expandable up to 26 channels)
• D-A converter........8 bits X 2 channels
• CRC calculation circuit ...1 circuit
• Watchdog timer ....1 line
• Programmable I/O ..87 lines(M30622(100-pin package)),70 lines(M30623(80-pin package))
• Input port................1 line (P85 shared with NMI pin)
• Memory expansion ...Available (to 1.2M bytes or 4M bytes)
• Chip select output ....4 lines(only M30622(100-pin package))(Note 2)
• Clock generating circuit ...2 built-in clock generation circuits (built-in feedback resistor, and external ceramic or quartz oscillator)

M30622ECTFP Typical Application

Audio, cameras, office equipment, communications equipment, portable equipment, cars, etc

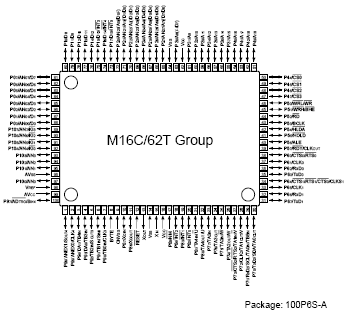

M30622ECTFP Connection Diagram

M30622ECTFP datasheet

M30622ECTFP
PDF/DataSheet Download

Datasheet: M30622ECTFP
File Size: 1776229 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Click here to Download
