Part Number: M36P0R9070E0
Description: The M36P0R9070E0 combines two memory devices in one Multi-Chip Package: 512-Mbit Multiple Bank Flash ...
- Table of contents:
M36P0R9070E0
-
Suppliers
DataSheet
General Description
M36P0R9070E0 General Description
The M36P0R9070E0 combines two memory devices in one Multi-Chip Package: 512-Mbit Multiple Bank Flash memory (the M58PR512J). 128 Mbit PSRAM (the M69KB128AA).
This datasheet should be read in conjunction with the M58PR512J and M69KB128AA datasheets, which are available from www.st.com.
Recommended operating conditions do not allow more than one memory to be active at the same time.
The memory is offered in a Stacked TFBGA107 package. It is supplied with all the bits erased (set to '1').
M36P0R9070E0 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit | |
|
Min |
Max | |||
|
TA |
Ambient Operating Temperature |
30 |
85 |
°C |
|
TBIAS |
Temperature Under Bias |
30 |
85 |
°C |
|
TSTG |
Storage Temperature |
65 |
125 |
°C |
|
VIO |
Input or Output Voltage |
0.2 |
2.45 |
V |
|
VDD |
Supply Voltage |
0.2 |
2.45 |
V |
|
VDDQ |
Input/Output Supply Voltage |
0.2 |
2.45 |
V |
|
VPP |
Program Voltage |
1.0 |
12.6 |
V |
|
IO |
Output Short Circuit Current |
|
100 |
mA |
|
tVPPH |
Time for VPP at VPPH |
|
100 |
hours |
M36P0R9070E0 Features
Multi-chip package
1die of 512 Mbit (32Mb x 16, Multiple Bank, Multi-Level, Burst) Flash Memory
1 die of 128Mbit (8Mb x16) PSRAM
Supply voltage
VDDF = VCCP = VDDQ = 1.7 to 1.95V
VPPF = 9V for fast program (12V tolerant)
Electronic signature
Manufacturer Code: 20h
Device Code: 8819
Package
ECOPACK®
1die of 512 Mbit (32Mb x 16, Multiple Bank, Multi-Level, Burst) Flash Memory
1 die of 128Mbit (8Mb x16) PSRAM
Supply voltage
VDDF = VCCP = VDDQ = 1.7 to 1.95V
VPPF = 9V for fast program (12V tolerant)
Electronic signature
Manufacturer Code: 20h
Device Code: 8819
Package
ECOPACK®

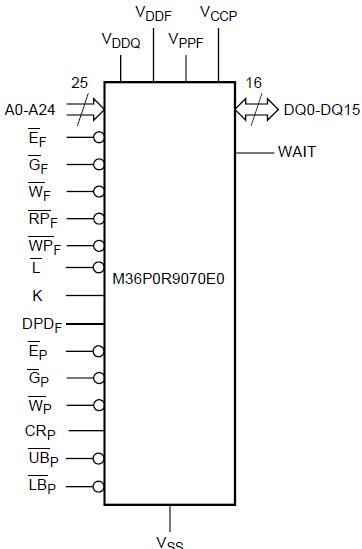

M36P0R9070E0 Connection Diagram
M36P0R9070E0
PDF/DataSheet Download
- Datasheet: M36P0R9070E0
- File Size: 205743 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·M3654K
- EPCOS
- SAW Components IF Filter for Quasi/Split Sound Applications
- 393216 KB
- ·M3669
- ETC [ETC]
- Mini size of Discrete semiconductor elements
- 512569 KB
- ·M366S0823DTS
- SAMSUNG [Samsung semiconductor]
- PC100 Unbuffered DIMM(168pin) SPD Specification(64Mb D-die base)
- 68718 KB
- ·M366S0924ETS-C7A
- SAMSUNG [Samsung semiconductor]
- SDRAM Unbuffered Module
- 498577 KB
- ·M366S0924FTS
- SAMSUNG [Samsung semiconductor]
- SDRAM Unbuffered Module
- 498078 KB
- ·M366S0924FTS-C7A
- SAMSUNG [Samsung semiconductor]
- SDRAM Unbuffered Module
- 498078 KB
- ·M366S1623DT0
- SAMSUNG [Samsung semiconductor]
- PC100 Unbuffered DIMM
- 139598 KB
- ·M366S1623DT0-C1H
- SAMSUNG [Samsung semiconductor]
- PC100 Unbuffered DIMM
- 139598 KB
M36P0R9070E0 Relative Products
M36P0R9060N0
The PSRAM and Flash memory components have separate power supplies but share the same grounds. They are distinguished by two Chip Enable inputs: EF for the Flash memory andEP for the PSRAM.Recommended operating conditions of M36P0R9060N0do not allow more tha...
M36P0R9060E0
The M36P0R9060E0 combines two memory devices in a Multi-Chip Package: 512-Mbit Multiple Bank Flash memory (the M58PR512J) 64-Mbit PSRAM (the M69KB096AM)The purpose of M36P0R9060E0 is to describe how the two memory components operate with respect to each othe...
M36P08K4Q3

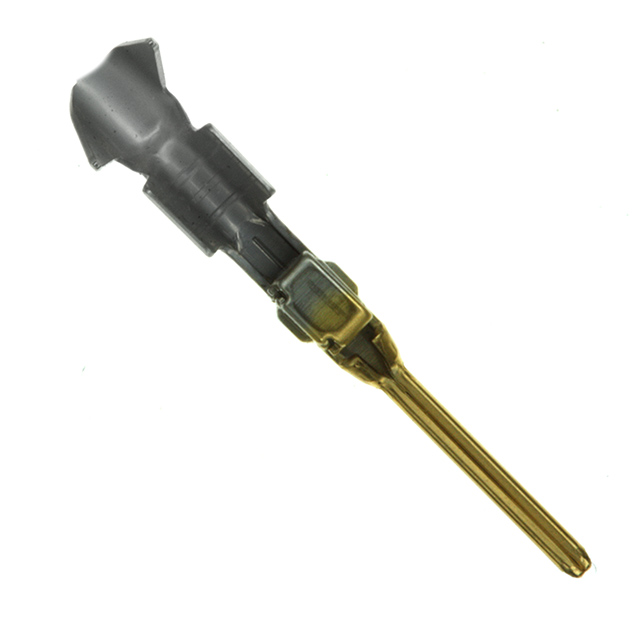

CONN PIN CRIMP MX36 GOLD
