Part Number: M37515M4-XXXHP
Description: The M37515M4-XXXHP is the 8-bit microcomputer based on the 740 family core technology. The M37...
- Table of contents:
M37515M4-XXXHP
-
Suppliers
DataSheet
General Description
M37515M4-XXXHP General Description
The M37515M4-XXXHP is the 8-bit microcomputer based on the 740 family core technology.
The M37515M4-XXXHP is designed for the household products and office automation equipment and includes serial I/O functions, 8-bit timer, A-D converter, and I2C-bus interface.
M37515M4-XXXHP Features
`Basic machine-language instructions ...................................... 71
`Minimum instruction execution time .................................. 0.5 ms (at 8 MHz oscillation frequency)
`Memory size ROM ............................................................................. 16 Kbytes AM.............................................................................. 512 bytes
`Programmable input/output ports ............................................ 40
`Interrupts ................................................. 16 sources, 16 vectors
`Timers ............................................................................. 8-bit 5 4
`Serial I/O ....................... 8-bit 5 1(UART or Clock-synchronized)
`Multi-master I2C-bus interface (option) ....................... 1 channel
`PWM ............................................................................... 8-bit 5 1
`A-D converter ............................................... 10-bit 5 8 channels
`Watchdog timer ............................................................ 16-bit 5 1
`Clock generating circuit ..................................... Built-in 2 circuits (connect to external ceramic resonator or quartz-crystal oscillator) PIN CONFIGURATION (TOP VIEW) Fig. 1 M37515M4-XXXHP pin configuration
`Power source voltage
`n high-speed mode .................................................. 4.0 to 5.5 V (at 8 MHz oscillation frequency)
`n high-speed mode .................................................. 2.7 to 5.5 V (at 4 MHz oscillation frequency)
`n middle-speed mode ............................................... 2.7 to 5.5 V (at 8 MHz oscillation frequency)
`n low-speed mode .................................................... 2.7 to 5.5 V (at 32 kHz oscillation frequency)
`Power dissipation
`n high-speed mode ..........................................................34 mW (at 8 MHz oscillation frequency, at 5 V power source voltage)
`n low-speed mode ............................................................ 60 mW (at 32 kHz oscillation frequency, at 3 V power source voltage)
`Operating temperature range.................................... 20 to 85°C
M37515M4-XXXHP Typical Application
Office automation equipment, FA equipment, Household products, Consumer electronics, etc.

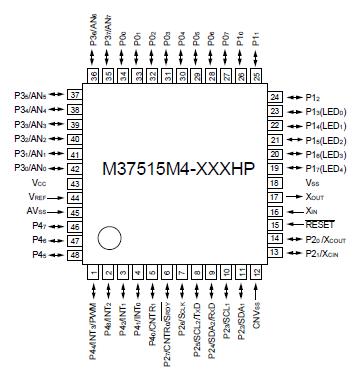

M37515M4-XXXHP Connection Diagram
M37515M4-XXXHP
PDF/DataSheet Download
- Datasheet: M37515M4-XXXHP
- File Size: 767138 KB
- Manufacturer: Mitsubishi
- Click here to Download
