MFG:MITSUBIS Package Cooled:QFP D/C:08+
MFG: MITSUBIS
Package Cooled: QFP
D/C: 08+
Description: The M37733S4BFP is a microcomputer using the 7700 Family core. This microcomputer has a CPU and a bus interface unit. T...
| Symbol | Parameter | Conditions | Ratings | Unit |
| Vcc | Power source voltage | 0.3 to +7 | V | |
| AVcc | Analog power source voltage ____ |
0.3 to +7 | V | |
| VI | Input voltage RESET, CNVss, BYTE | 0.3 to +12 | V | |
| VI | Input voltage P10/A8/D8 P17/A15/D15, P20/A16/D0 P27/A23/D7, P43 P47, P50 P57, P60 P67, P70 P77, ___ ___ P80 P87, VREF, XIN, HOLD, RDY |
0.3 to Vcc + 0.3 | V | |
| VO | Output voltage P00/A0 P07/A7, P10/A8/D8 P17/A15/D15, _ P20/A16/D0 P27/A23/D7, P30/R/W, __ ___ P31/BHE, P32/ALE, P33/HLDA , P42/ 1, P43 P47, P50 P57, P60 P67, _ P70 P77, P80 P87, XOUT, E |
0.3 to Vcc + 0.3 | V | |
| Pd | Power dissipation | Ta = 25 °C | 300 | mW |
| Topr | Operating temperature | 20 to +85 | °C | |
| Tstg | Storage temperature | 40 to +150 | °C |
lNumber of basic instructions .................................................. 103
lMemory size RAM ................................................ 2048 bytes
lInstruction execution time
The fastest instruction at 25 MHz frequency ...................... 160 ns
lSingle power supply .................................................... 5 V ± 10 %
lLow power dissipation (At 25 MHz frequency)....... 47.5 mW (Typ.)
lInterrupts ............................................................ 19 types, 7 levels
lMultiple-function 16-bit timer ................................................. 5 + 3
lSerial I/O (UART or clock synchronous)..................................... 3
l10-bit A-D converter .............................................. 8-channel inputs
l12-bit watchdog timer
lProgrammable input/output
(ports P4, P5, P6, P7, P8) ........................................................ 37
lClock generating circuit ........................................ 2 circuits built-in

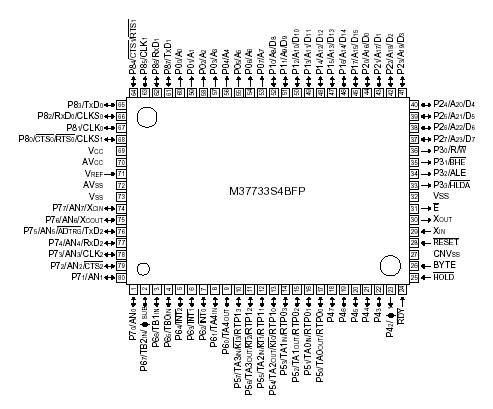

M37733S4BFP
PDF/DataSheet Download
The M37733S4 is a microcomputer using the 7700 family core.This microcomputer has a CPU and a bus interface unit.The CPU is a 16-bit parallel processor, M37733S4 can be an 8-bit parallel processor,and the bus interface unit enhances the memory access efficie...
