Part Number: M37754FFCHP
Description: The M37754FFCGP and the M37754FFCHP are single-chip microcomputers designed with high-performance CMOS...
- Table of contents:
M37754FFCHP
-
Suppliers
DataSheet
General Description
M37754FFCHP General Description
The M37754FFCGP and the M37754FFCHP are single-chip microcomputers designed with high-performance CMOS silicon gate technology, including the internal flash memory. These are housed in 100-pin plastic molded QFP.
These microcomputers have a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can also be switched to perform 8-bit parallel processing, and the bus interface unit enhances the memory access efficiency to execute instructions fast. In addition to the 7700 Family basic instructions, the M37754FFCGP and the M37754FFCHP have 6 special instructions which contain instructions for signed multiplication/division; these added instructions improve the servo arithmetic performance to control hard disk drives and so on.
These microcomputers also include the flash memory, RAM, multiple- function timers, motor control function, serial I/O, A-D converter, D-A converter, and so on. The internal flash memory can be programed and erased by using a PROM programmer or by control of the central processing unit (CPU). Therefore, these microcomputers can change the program easily even after they are mounted on the board.
M37754FFCHP Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Units |
|
VCC AVCC VI |
Power source voltage Analog power source voltage Input voltage RESET, CNVSS, BYTE |
0.3 to 7 0.3 to 7 0.3 to 12 (Note) 0.3 to VCC+0.3 0.3 to VCC+0.3 300 20 to 85 40 to 150 |
V V V V V mW °C °C |
|
VI |
Input voltage P00P07, P10P17, P20P23, P27, P30P33, P40P47, P50P57, P60P67, P70P77, P80P87, P90P95, P100P107, P110P117, VREF, XIN | ||
|
VO |
Output voltage P00P07, P10P17, P20P23, P27, P30P33, P40P47, P50P57, P60P67, P70P77, P80P87, P90P95, P100P107, P110P117, XOUT, E | ||
|
Pd |
Power dissipation Operating temperature Storage temerature |
M37754FFCHP Typical Application
·Control devices for personal computer peripheral equipment such as CD-ROM drives, hard disk drives, high density FDD, printers
·Control devices for office equipment such as copiers and facsimiles
·Control devices for industrial equipment such as communication and measuring instruments
·Control devices for equipment required for motor control such as inverter air conditioner and general purpose inverter

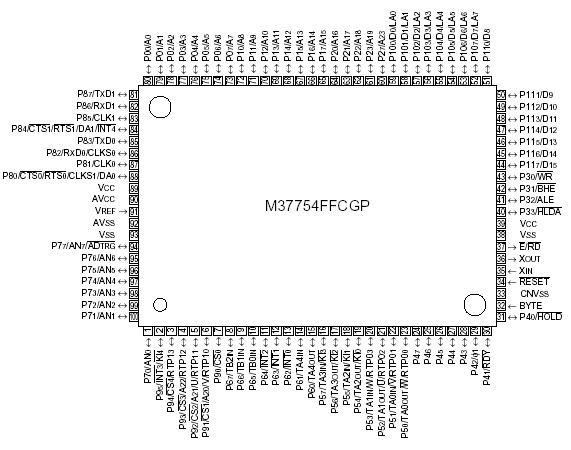

M37754FFCHP Connection Diagram
M37754FFCHP
