Five Points

Part Number: M37905F8CSP

MFG: DIP64

Package Cooled: 2719

D/C: RENESAS

Description: These are single-chip 16-bit microcomputers designed with high-performance CMOS silicon gate technology, including the ...

M37905F8CSP General Description

These are single-chip 16-bit microcomputers designed with high-performance CMOS silicon gate technology, including the internal flash memory and, being packaged in 64-pin plastic molded QFP or shrink plastic molded DIP. These microcomputers support the 7900 Series instruction set, which are enhanced and expanded instruction set and are upper-compatible with the 7700/7751 Series instruction set.

The CPU of these microcomputers is a 16-bit parallel processor that can also be switched to perform 8-bit parallel processing. Also, the bus interface unit of these microcomputers enhances the memory access efficiency to execute instructions fast. Therefore, these microcomputers are suitable for office, business, and industrial equipment controller that require high-speed processing of large data.
Also, they are suitable for motor-control equipment since each of them includes the motor control circuit.

For the internal flash memory, single-power-supply programming and erasure, using a PROM programmer or the control by the central processing unit (CPU), is supported. Also, each of these microcomputers has the memory area dedicated for storing a certain software which controls programming and erasure (reprogramming control software). Therefore, on these microcomputers, the program can easily be changed even after they are mounted on the board.

M37905F8CSP Maximum Ratings

Symbol	Parameter	Ratings	Unit
V_CC	Power source voltage	0.3 to 6.5	V
A_VCC	Analog power source voltage	0.3 to 6.5	V
V_I	Input voltage P10P17, P20P27, P40P47, P51P53, P55P57, P60P67, P70P77, P80P83, P4OUTCUT , P6OUTCUT , VCONT, VREF, XIN, RESET , MD0, MD1	0.3 to VCC+0.3	V
V_O	Output voltage P10P17, P20P27, P40P47, P51P53, P55P57, P60P67, P70P77, P80P83, XOUT	0.3 to VCC+0.3	V
P_d	Power dissipation	300	mW
T_opr	Operating ambient temperature	20 to 85
T_stg	Storage temperature	40 to 150

M37905F8CSP Features

<Microcomputer mode>

• Number of basic machine instructions .................................... 203
• Memory
            Flash memory (User ROM area) ................................... 60 Kbytes
            RAM ............................................................................. 3072 bytes
            Flash memory (Boot ROM area) ..................................... 8 Kbytes
• Instruction execution time
            The fastest instruction at 20 MHz frequency ........................ 50 ns
• Single power supply .................................................... 5 V ± 0.5 V
• Interrupts ........... 8 external sources, 23 internal sources, 7 levels
• Multi-functional 16-bit timer ................................................. 10 + 3
            (Three-phase motor drive waveform or Pulse motor drive waveform output is available.)
• Serial I/O (UART or Clock synchronous) ..................................... 3
• 10-bit A-D converter .......................................... 12-channel inputs
• 8-bit D-A converter ............................................ 2-channel outputs
• 12-bit watchdog timer
• Programmable input/output (ports P1, P2, P4, P5, P6, P7, P8) ...... 50

<Flash memory mode>

• Power supply voltage .................................................. 5 V ± 0.5 V
• Programming/Erase voltage ........................................ 5 V ± 0.5 V
• Programming method .................... Programming in a unit of word
• Erase method ............................................ Block erase or Total erase
            M37905F8CFP, M37905F8CSP
           .............. 4 blocks (8 Kbytes X 2, 16 Kbytes X 1, 28 Kbytes X 1)
• Programming/Erase control by software command
• Maximum number of reprograms ............................................ 100

M37905F8CSP Typical Application

• Control devices for office equipment such as copiers and facsimiles
• Control devices for industrial equipment such as communication and measuring instruments
• Control devices for equipment, requiring motor control, such as inverter air conditioners and general-purpose inverters

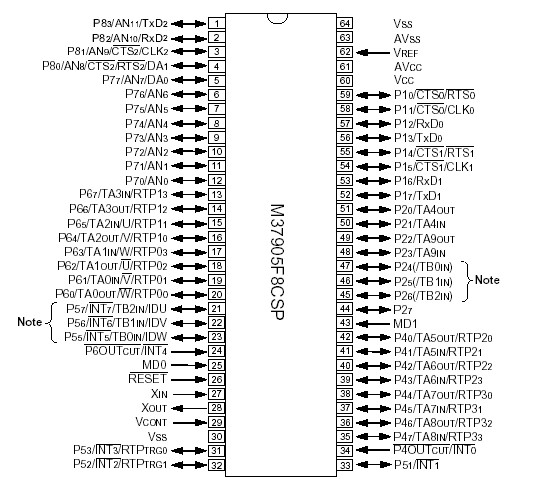

M37905F8CSP Connection Diagram

M37905F8CSP datasheet
