Part Number: M39832
Description: The M39832 is a memory device combining Flash and EEPROM into a single chip and using singlesupp...
- Table of contents:
M39832
-
Suppliers
DataSheet
General Description
M39832 General Description
The M39832 is a memory device combining Flash and EEPROM into a single chip and using single supply voltage. The memory is mapped in two arrays: 8 Mbit of Flash memory and 256 Kbit of EEPROM memory. Each space is independant for writing, in concurrent mode the Flash Memory can be read while the EEPROM is being written.
An additional 64 bytes of EPROM are One Time Programmable.
The M39832 EEPROM memory array is organized in byte only (regardless on the BYTE pin). It may be written by byte or by page of 64 bytes and the integrity of the data can be secured with the help of the Software Data Protection (SDP).
M39832 Maximum Ratings
| Symbol | Parameter |
Value |
Unit |
| TA | Ambient Operating Temperature |
40 to 85 |
|
| TBIAS | Temperature Under Bias |
50 to 125 |
|
| TSTG | Storage temperature |
65 to 150 |
|
| VIO(2) | Input or Output Voltages(except A9) |
0.6 to5 |
V |
| VCC | Supply Voltage |
0.6 to 5 |
V |
| VA9, VG, VEF 1,2 | A9, G, EF Voltage |
0.6 to 13.5 |
V |
Notes: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
2. Minimum Voltage may undershoot to 2V during transition and for less than 20ns.
M39832 Features
`2.7V to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPARATIONS
`FLASH ARRAY
Boot block (Top or Bottom location)
Parameter and Main blocks
Selectable x8/x16 Data Bus (BYTE pin).
`EEPROM ARRAY
x8 Data Bus only.
`120ns ACCESS TIME (Flash and EEPROM array)
`WRITE, PROGRAM and ERASE STATUS BITS
`CONCURRENT MODE (Read Flash while writing to EEPROM)
`100,000 ERASE/WRITE CYCLES
`10 YEARS DATA RETENTION
`LOW POWER CONSUMPTION
Stand-by mode: 100mA
Automatic Stand-by mode
`64 bytes ONE TIME PROGRAMMABLE MEMORY (x8 Data Bus only)
`STANDARD EPROM/OTP MEMORY PACKAGE
`EXTENDED TEMPERATURE RANGES
`FLASH ARRAY
Boot block (Top or Bottom location)
Parameter and Main blocks
Selectable x8/x16 Data Bus (BYTE pin).
`EEPROM ARRAY
x8 Data Bus only.
`120ns ACCESS TIME (Flash and EEPROM array)
`WRITE, PROGRAM and ERASE STATUS BITS
`CONCURRENT MODE (Read Flash while writing to EEPROM)
`100,000 ERASE/WRITE CYCLES
`10 YEARS DATA RETENTION
`LOW POWER CONSUMPTION
Stand-by mode: 100mA
Automatic Stand-by mode
`64 bytes ONE TIME PROGRAMMABLE MEMORY (x8 Data Bus only)
`STANDARD EPROM/OTP MEMORY PACKAGE
`EXTENDED TEMPERATURE RANGES

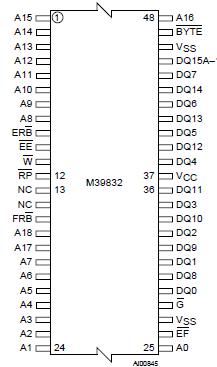

M39832 Connection Diagram
M39832
PDF/DataSheet Download
- Datasheet: M39832
- File Size: 259972 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
