Part Number: M44C092









Description: The M44C092 and M44C892 are members of TEMIC Semiconductors' family of 4-bit single-chip microcontrollers. They offer h...


Urgent Purchase

M44C092 General Description


The M44C092 and M44C892 are members of TEMIC Semiconductors' family of 4-bit single-chip microcontrollers. They offer highest integration for IR and RF data communication, remote-control and phase-control applications. The M44C092 and M44C892are suitable for the transmitter side as well as the receiver side. It contains ROM, RAM, parallel I/O ports, two 8-bit programmable multifunction timer/counters with modulator and demodulator function, voltage supervisor, interval timer with watchdog  function and a sophisticated on-chip clock generation with external clock input, integrated RC-, 32-kHz crystal- and 4-MHz crystal-oscillators. The M44C892 has an additional EEPROM as a second chip in one package.

M44C092 Maximum Ratings

Parameters Symbol Value Unit
Supply voltage VDD -0.3 to +6.5 V
Input voltage(on any pin) VIN VSS -0.3VINVDD +0.3 V
Output short circuit duration tshort indefinite s
Operating temperature range Tamb -40 to +85
Storage temperature range Tstg -40 to +130
Thermal resistance(SSO20) RthJA 140 K/W
Soldering temperature(t10s) Tsld 260
Stresses greater than those listed under absolute maximum ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at any condition above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating condition for an extended period may affect device reliability. All inputs and outputs are protected against high electrostatic voltages or electric fields. However, precautions to minimize the build-up of electrostatic charges during handling are recommended. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (e.g. VDD).

M44C092 Features

Programmable system-clock with prescaler and five different clock sources
Wide supply voltage range (1.8 to 6.5 V)
Very low sleep current (< 1 A)
4-Kbyte ROM, 256 x 4-bit RAM
32 x 16-bit EEPROM (M44C892 only)
16 bidirectional I/Os
Up to 7 external / internal interrupt sources
Synchronous serial interface (2-wire, I2C, 3-wire)
Multifunction timer/counter with
    IR remote control carrier generator
    Biphase-, Manchester- and pulse-width modulator and demodulator
    Phase control function
Watchdog, POR and brown-out function
Voltage monitoring incl. Lo_BAT detect
Flash controller T48C893 available (SSO20)
Code-efficient instruction set
High-level language programming with qFORTH compiler

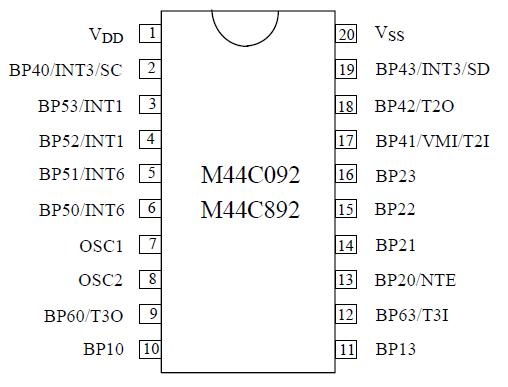

M44C092 Connection Diagram
