Purchase M4565, In-stock M4565 From SeekIC.
MFG:UTC D/C:O9+
Part Number: M4565
MFG: UTC
D/C: O9+
Description: The UTC M4565 integrated circuit is a high-gain, wide-bandwidth, dual low noise operational amplifier ...
- Table of contents:
M4565
-
Suppliers
DataSheet
General Description
M4565 General Description
The UTC M4565 integrated circuit is a high-gain, wide-bandwidth, dual low noise operational amplifier capable of driving 20V peak-to-peak into 400 load.
M4565 Maximum Ratings
| PARAMETER |
SYMBOL |
RATINGS |
UNIT | |
| Supply Voltage |
V+/V- |
±18 |
V | |
| Differential Input Voltage |
VID |
±30 |
V | |
| Input Voltage |
VIC |
±15 * |
V | |
| Power Dissipation | DIP-8 SOP-8 TSSOP-8 |
PD |
500
|
mW |
| Operating Temperature Range |
Topr |
-20~+75 |
||
| Storage Temperature Range |
Tstg |
-40~+125 |
||
* For supply voltage less than ±15V,the absolute maximum input voltage is equal to the supply voltage.
M4565 Features
`Operating Voltage: ±4V~±18V
`Wide Gain Bandwidth Product: 4MHz (typ.)
`Slew Rate: 4V/s (typ.)
`Wide Gain Bandwidth Product: 4MHz (typ.)
`Slew Rate: 4V/s (typ.)

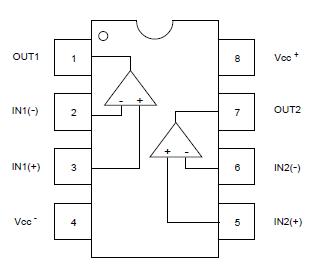

M4565 Connection Diagram
M4565
PDF/DataSheet Download
- Datasheet: M4565
- File Size: 130155 KB
- Manufacturer: UTC [Unisonic Technologies]
- Click here to Download
