General Description
M48T128V* General Description
The M48T128Y/V TIMEKEEPER® RAM is a 128Kb x 8 non-volatile static RAM and real time clock. The special DIP package provides a fully integrated battery back-up memory and real time clock solution. The M48T128Y/V directly replaces industry standard 128Kb x 8 SRAM.
It also provides the non-volatility of Flash without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed.The 32-pin, 600mil DIP Hybrid houses a controller chip, SRAM, quartz crystal, and a long life lithium button cell in a single package.
M48T128V* Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit | |
|
TA |
Ambient Operating Temperature |
0 to 70 |
||
|
TSTG |
Storage Temperature (VCC Off, Oscillator Off) |
40 to 85 |
||
|
TSLD(1) |
Lead Solder Temperature for 10 seconds |
260 |
||
|
VIO |
Input or Output Voltages |
0.3 to 7 |
V | |
|
VCC |
Supply Voltage |
M48T128Y |
0.3 to 7 |
V |
|
M48T128V |
0.3 to 4.6 |
|||
|
IO |
Output Current |
20 |
mA | |
|
PD |
Power Dissipation |
1 |
W | |
Note: 1. Soldering temperature not to exceed 260 for 10 seconds (total thermal budget not to exceed 150 for longer than 30 seconds).No preheat above 150, or direct exposure to IR reflow (or IR preheat) allowed, to avoid damaging the Lithium battery.
M48T128V* Features
` INTEGRATED, ULTRA LOW POWER SRAM,REAL TIME CLOCK, POWER-FAIL CONTROL CIRCUIT, BATTERY, AND CRYSTAL
` BCD CODED YEAR, MONTH, DAY, DATE, HOURS, MINUTES, AND SECONDS
` AUTOMATIC POWER-FAIL CHIP DESELECT AND WRITE PROTECTION
` WRITE PROTECT VOLTAGES (VPFD= Power-fail Deselect Voltage):M48T128Y: VCC= 4.5 to 5.5V 4.1V VPFD 4.5V
M48T128V*: VCC = 3.0 to 3.6V 2.7V VPFD 3.0V
` CONVENTIONAL SRAM OPERATION;UNLIMITED WRITE CYCLES
` SOFTWARE CONTROLLED CLOCK CALIBRATION FOR HIGH ACCURACY APPLICATIONS
` 10 YEARS OF DATA RETENTION AND CLOCK OPERATION IN THE ABSENCE OF POWER
` SELF-CONTAINED BATTERY AND CRYSTAL IN THE DIP PACKAGE
` PIN AND FUNCTION COMPATIBLE WITH JEDEC STANDARD 128K x 8 SRAMs
` BCD CODED YEAR, MONTH, DAY, DATE, HOURS, MINUTES, AND SECONDS
` AUTOMATIC POWER-FAIL CHIP DESELECT AND WRITE PROTECTION
` WRITE PROTECT VOLTAGES (VPFD= Power-fail Deselect Voltage):M48T128Y: VCC= 4.5 to 5.5V 4.1V VPFD 4.5V
M48T128V*: VCC = 3.0 to 3.6V 2.7V VPFD 3.0V
` CONVENTIONAL SRAM OPERATION;UNLIMITED WRITE CYCLES
` SOFTWARE CONTROLLED CLOCK CALIBRATION FOR HIGH ACCURACY APPLICATIONS
` 10 YEARS OF DATA RETENTION AND CLOCK OPERATION IN THE ABSENCE OF POWER
` SELF-CONTAINED BATTERY AND CRYSTAL IN THE DIP PACKAGE
` PIN AND FUNCTION COMPATIBLE WITH JEDEC STANDARD 128K x 8 SRAMs

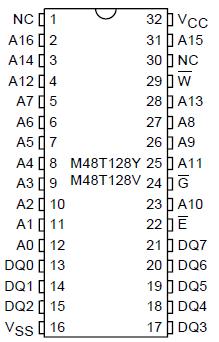

M48T128V* Connection Diagram
