Part Number: M48Z02
Description: The M48Z02/12 ZEROPOWER® RAM is a 2K x 8 non-volatile static RAM which is pin and funct...
- Table of contents:
M48Z02
-
Suppliers
DataSheet
General Description
M48Z02 General Description
The M48Z02/12 ZEROPOWER® RAM is a 2K x 8 non-volatile static RAM which is pin and functional compatible with the DS1220.
A special 24-pin, 600mil DIP CAPHAT™ package houses the M48Z02/12 silicon with a long life lithium button cell to form a highly integrated battery backed-up memory solution.
The M48Z02/12 button cell has sufficient capacity and storage life to maintain data functionality for an accumulated time period of at least 10 years in the absence of power over commercial operating temperature range.
The M48Z02/12 is a non-volatile pin and function equivalent to any JEDEC standard 2K x 8 SRAM. It also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed.
M48Z02 Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Unit | |
|
TA |
Ambient Operating Temperature | Grade 1 |
0 to 70 |
°C |
| Grade 6 |
40 to 85 |
| ||
|
TSTG |
Storage Temperature (VCC Off, Oscillator Off) |
40 to 85
|
°C
| |
|
TSLD(1) |
Lead Solder Temperature for 10 seconds |
260 |
°C | |
|
VIO |
Input or Output Voltages |
0.3 to 7.0 |
V | |
|
VCC |
Supply Voltage |
0.3 to 7.0 |
V | |
|
IO |
Output Current |
20 |
mA | |
|
PD |
Power Dissipation |
1 |
W | |
M48Z02 Features
INTEGRATED, ULTRA LOW POWER SRAM and POWER-FAIL CONTROL CIRCUIT
UNLIMITED WRITE CYCLES
READ CYCLE TIME EQUALS WRITE CYCLE TIME
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z02: VCC = 4.75 to 5.5V; 4.5V VPFD 4.75V
M48Z12: VCC = 4.5 to 5.5V; 4.2V VPFD 4.5V
SELF-CONTAINED BATTERY IN THE CAPHAT™ DIP PACKAGE
PIN and FUNCTION COMPATIBLE WITH JEDEC STANDARD 2K x 8 SRAMs
UNLIMITED WRITE CYCLES
READ CYCLE TIME EQUALS WRITE CYCLE TIME
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z02: VCC = 4.75 to 5.5V; 4.5V VPFD 4.75V
M48Z12: VCC = 4.5 to 5.5V; 4.2V VPFD 4.5V
SELF-CONTAINED BATTERY IN THE CAPHAT™ DIP PACKAGE
PIN and FUNCTION COMPATIBLE WITH JEDEC STANDARD 2K x 8 SRAMs

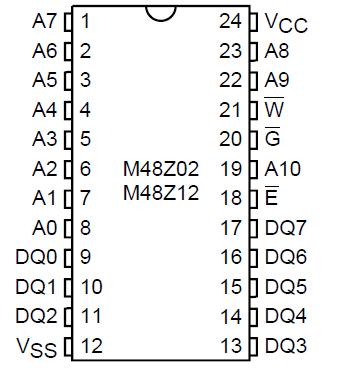

M48Z02 Connection Diagram
M48Z02
