MFG:MITSUBISHI Package Cooled:DIP28 D/C:9817+(1465PCS/9814+(126PCS)
MFG: MITSUBISHI
Package Cooled: DIP28
D/C: 9817+(1465PCS/9814+(126PCS)
Description: The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifi...
The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 150MHz. The circuit also features the OSD mixing function.
The circuit is most useful with high-resolution displays that have OSD, and its function are available for each channel, including OSD blanking, OSD mixing, retrace blanking, wide-band amplification,contrast control (main and sub), and brightness control.
|
Symbol |
Psrameter |
Ratings |
Unit |
| Vcc | Supply voltage |
13.0 |
V |
| Pd | Power dissipation |
2403 |
mW |
| Topr | Ambient temperature |
-20to+85 |
°C |
| Tstg | Storage temperature |
-40to+150 |
°C |
| Vopr | Recommended supply voltage |
12.0 |
V |
| Vopr' | Recommended supply voltage range |
11.5to12.5 |
V |
| Surge | Electrostatic discharge |
±200 |
V |
• Frequency band width: RGB................................150MHz (3VP-P)
OSD..............................................50MHz
Input :RGB.............................................................0.7VP-P (typ.)
OSD...............................................3.0VP-P min. (positive)
BLK (for OSD)...............................3.0VP-P min. (positive)
Retrace BLK..................................3.0VP-P min. (positive)
Output :RGB...........................................................4.5VP-P (max.)
OSD...........................................................4.5VP-P (max.)
• To adjust contrast and OSD Adj, for each, two types of controls are provided, main and sub. With the main control, the contrast or OSD Adj of the 3-channels can be changed simultaneously. Sub controls are used to adjust the contrast of a given channel individually. The control terminals can be controlled by applying a voltage of 0 to 5V.
• The DC power remains stable at the IC output terminal because
a feedback circuit is built in.

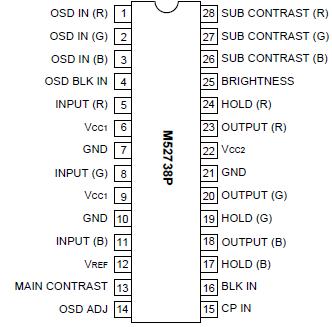

M52738P
PDF/DataSheet Download
The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 150MHz. The circuit also features the OSD mixing function. The M52737SP is most useful with high-resolution displays that have OSD,...
The M52734SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 130MHz. The circuit also features the OSD mixing function.The M52737SP is most useful with high resolution displays that have OSD, a...
The M52733SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 130MHz. The circuit also features the OSD blanking function.The M52733SP is most useful with high resolution displays that have OSD,...
The M52732SP is a semiconductor integrated circuit that has 3-channels of built-in amplifiers in the broad-band video amplifier having a 75MHz band. Every channel is provided with a broad-band amplifier, contrast control (main and sub), and brightness contro...
The M52727SP is an I2C bus interface built-in semiconductor IC designed to process PAL/NTSC type image signals, color signals and deflection signals. Provided with a switch for both S input and AV, black extension function, etc., the M52727SP can meet a wide...
The M52723ASP is semiconductor integrated circuit for Multi-Sync display monitors.The M52723ASP generates horizontal and vertical parabola waves, and it can revise focus of CRT monitors.
