Part Number: M52742ASP



MFG: MIN

Package Cooled: DIP



Description: M52742ASP is semiconductor integrated circuit for CRT display monitor.It includes OSD blanking, OSD mixing, ret...


Urgent Purchase

M52742ASP General Description


M52742ASP is semiconductor integrated circuit for CRT display monitor.

It includes OSD blanking, OSD mixing, retrace blanking, wide band amplifer, brightness control, uniformity function.

Main/sub contrast and OSD adjust function can be controlled by I2C bus.

M52742ASP Maximum Ratings

Symbol
Parameter
Ratings
Unit
VCC12
 Supply voltage (pins 3,8,12,36)

13.0
V
Vcc5
 Supply voltage (pin 17)
6.0
V
Pd
 Power dissipation
Power dissipation
mW
Topr
 Ambient temperature
-20 to +75
°C
Tstg
 Storage temperature
-40 to +150
°C
Vopr12
 Recommended supply 12
12.0
V
Vopr5
 Recommended supply 5
5.0
V

M52742ASP Features

• Frequency band width: RGB.............................200MHz (at -3dB)
                                       OSD..............................................80MHz
   Input :RGB.............................................................0.7VP-P (typ.)
              OSD..........................................3VP-P minimum (positive)
                BLK (for OSD)..........................3VP-P minimum (positive)
               Retrace BLK.............................3VP-P minimum (positive)
    Output :RGB..........................................................5.5VP-P (max.)
              OSD..............................................................5VP-P (max.)

• Main contrast and sub contrast can be controlled by I2C bus.

• Include internal and external pedestal clamp circuit

M52742ASP Typical Application

CRT display monitor

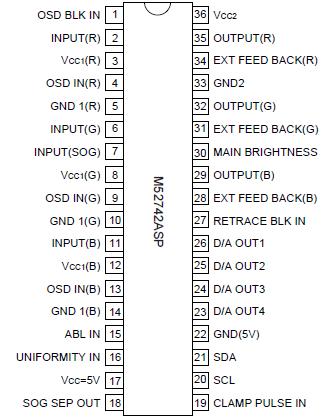

M52742ASP Connection Diagram

M52742ASP Connection Diagram

M52742ASP datasheet

M52742ASP
PDF/DataSheet Download

  • Datasheet: M52742ASP
  • File Size: 411102 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
