MFG:MIT Package Cooled:DIP
MFG: MIT
Package Cooled: DIP
Description: M52742SP is semiconductor integrated circuit for CRT display monitor.It includes OSD blanking, OSD mixing, retr...
|
Symbol |
Parameter |
Ratings |
Unit |
|
VCC |
Supply voltage |
13.0 |
V |
|
Pd |
Power dissipation |
2403 |
mW |
|
Topr |
Ambient temperature |
-20 to +75n |
°C |
|
Tstg |
Storage temperature |
40 to +150 |
°C |
|
Vopr |
Recommended supply |
12.0 |
V |
|
Vopr5 |
Voltage range |
10.5 to 12.5 |
V |
•Frequency band width: RGB.............................200MHz
(at -OSD..............................................80MHz
Input :RGB.............................................................0.7V P-P
OSD..........................................3VP-P minimum (positive)
BLK (for OSD)..........................3V P-P minimum (positive)
Retrace BLK.............................3V P-P minimum (positive)
Output :RGB..........................................................5.5V P-P(max.)
OSD..............................................................5V P-P(max.)
•Main contrast and sub contrast can be controlled by I2C bus.
•Include internal and external pedestal clamp circuit

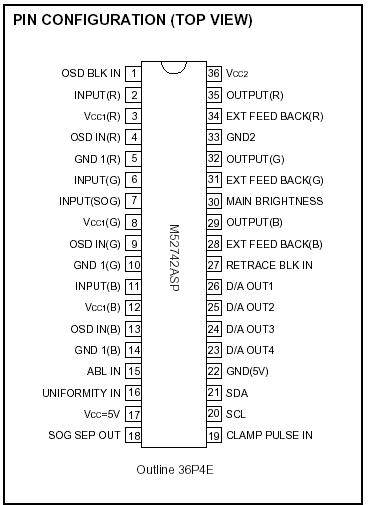

M52742SP
PDF/DataSheet Download
M52742ASP is semiconductor integrated circuit for CRT display monitor.It includes OSD blanking, OSD mixing, retrace blanking, wide band amplifer, brightness control, uniformity function.Main/sub contrast and OSD adjust function can be controlled by I2C bus.
M52739FP is integrated Circuit for LCD Display Monitor.It is controlled IIC BUS and Band Wide is 180MHz.It includes OSD Blanking ,OSD Mixing,Wide BandAmplifier,Main/Sub Contrast Main/Sub Brightness,and 2 Input routes.Vcc Voltage is 5V and Flat package is use...
The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 150MHz. The circuit also features the OSD mixing function.The M52738P is most useful with high-resolution displays that have OSD, an...
The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 150MHz. The circuit also features the OSD mixing function. The M52737SP is most useful with high-resolution displays that have OSD,...
The M52734SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 130MHz. The circuit also features the OSD mixing function.The M52737SP is most useful with high resolution displays that have OSD, a...
The M52733SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 130MHz. The circuit also features the OSD blanking function.The M52733SP is most useful with high resolution displays that have OSD,...
