Features:

• Frequency band: RGB ............................................250MHz
                              HV...................................10kHz to 200kHz
• Input level: RGB................................................0.7Vp-p(typ.)
                      HV TTL input....................3.5Vo-p(both channel)
• RGBOUT can drive connected load of 75W.
• Only the G channel is provided with sync-on video output.
• The TTL format is adopted for HV output.
• It is possible to save the consumption current by stopping current supply to Pin 2, 4, 24, 27, 30.
• Sync Separation circuit


Application

Display monitor

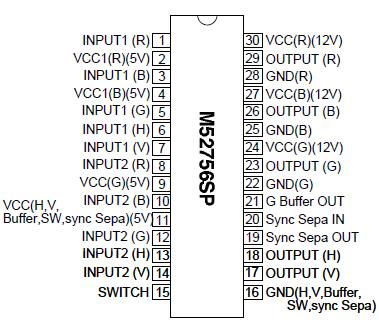

Pinout

Connection Diagram


Specifications

Symbol Parameter Ratings Unit
Vcc Supply voltage
6.0,13.0
V
Pd Power dissipation
1736
mW
Topr Ambient temperature
-20to+75
Tstg Storage temperature
-40to+150
Vopr Recommended supply voltage
5.0,12.0
V
Vopr' Recommended supply voltage range
4.5to5.5,11.5to12.5
V
Surge Electrostatic discharge
±150
V



Description

The M52756SP is a semiconductor integrated circuit for the RGBHV interface. The device features switching signals input from two types of image sources and outputting the signals to the CRT display, etc. Synchronous signals, meeting a frequency band of 10kHz to 200kHz, are output at TTL. The frequency band of video signals is 250MHz, acquiring highresolution images, and are optimum as an interface IC with high-resolution CRT display and various new media.
