MFG:MIT Package Cooled:DIP-52 D/C:99+
MFG: MIT
Package Cooled: DIP-52
D/C: 99+
Description: The M52771ASP is a single chip CTV processor which has VIF/SIF, luminance, chrominance, mono sound, OS...
The M52771ASP is a single chip CTV processor which has VIF/SIF, luminance, chrominance, mono sound, OSD display,
RGB interface, and deflection.
And it is possible to control each parameters by I2C bus. A baseband 1H delay line is built-in, and conjunction with SECAM decoder M52325AP simplifies multi system CTV chassis.
|
Symbol |
Parameter |
Ratings |
Units |
| Vcc | Supply voltage |
6.0,10.0 |
V |
| Pd | Power dissipation |
1690 |
mW |
| K | Thermal derating |
15 |
mW/°C |
| Topr | Operating temperature |
-20to65 |
°C |
| Tstg | Storage temperature |
-40to125 |
°C |
• Built-in 1H Delay Line using Bi-CMOS technology
• Multistandard PLL demodulator for IF
• Alignment-free sound demodulator
• Flexible source selection with internal CVBS and external CVBS or Y/C input signal
• Audio switch integrated
• Integrated chroma trap and bandpass filters with auto-calibration
• Luminance delay line integrated
• RGB control circuit with cut-off and drive
• Linear RGB inputs and fast blanking
• Horizontal synchronaization with two control loops and alignmentfree H-oscillator
• Vertical count-down circuit
• Vertical saw tooth generator integrated
• I2C Bus control of various functions
• Easy interfacing with SECAM decoder for multistandard applications
• Small amount of peripheral components
• 52 pin shrink DIP

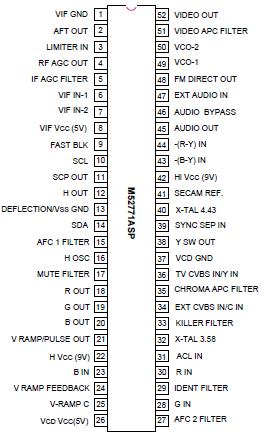

M52771ASP
PDF/DataSheet Download
