Part Number: M52779SP
Description: The M52779SP is a single-chip semiconductor integrated circuit to process signals of a color TV. Circu...
- Table of contents:
M52779SP
-
Suppliers
DataSheet
General Description
M52779SP General Description
The M52779SP is a single-chip semiconductor integrated circuit to process signals of a color TV. Circuits to process video IF, sound IF, video, color, and deflection signals, a I2C bus control circuit, and D/ A are build in this device.
This IC can be used not only for popular-type TV sets but also for middle-class TV sets. Combined with a SECAM chroma decoder, the M52325AP, this device can process signals of every type of TVs in the world by discriminating them fully automatically
M52779SP Maximum Ratings
| Symbol | Parameter |
Ratings |
Unit | |
| VCC | Supply voltage |
6.0, 9.0 |
V | |
| Pd | Power dissipation |
1.69 |
W | |
| Topr | Operating temperature |
-20 to +65 |
°C | |
| Tstg | Storage temperature |
-40 to +150 |
°C | |
| Surge | Electrostatic discharge |
-200 to +200 |
V | |
M52779SP Features
• A built-in I2C bus control circuit makes it possible to reduce the number of peripheral parts and rationalize production lines.
• Various filters (TRAP, BPF, Y-DL, RGB clamp) are build in this IC.
• PLL detection system is introduced to process video IF and voice IF. Furthermore, AFT coil is not necessary.
• DL aperture control
• Color signal frequency and vertical frequency of TVs of every type can be discriminated fully automatically.
• Horizontal/vertical countdown system
• V-Ramp output
• RGB output
• Built in Y/C SW
• Various filters (TRAP, BPF, Y-DL, RGB clamp) are build in this IC.
• PLL detection system is introduced to process video IF and voice IF. Furthermore, AFT coil is not necessary.
• DL aperture control
• Color signal frequency and vertical frequency of TVs of every type can be discriminated fully automatically.
• Horizontal/vertical countdown system
• V-Ramp output
• RGB output
• Built in Y/C SW
M52779SP Typical Application
PAL/NTSC CTV

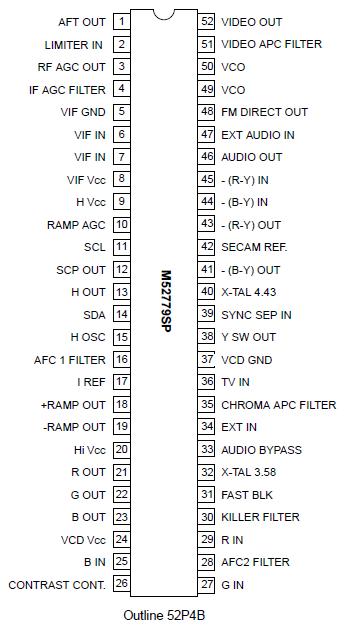

M52779SP Connection Diagram
