Part Number: M52959FP
Description: M52959FP is a semiconductor integrated circuit built-in PSD(Position Sensitive Device) and distance de...
- Table of contents:
M52959FP
-
Suppliers
DataSheet
General Description
M52959FP General Description
M52959FP is a semiconductor integrated circuit built-in PSD(Position Sensitive Device) and distance detection signal processor for 3V supply voltage.
This device transforms each signal current(I1 and I2) from PSD sensor to the voltage, and outputs it as the 4 Zone data after doing calculation of I1/(I1+I2).
M52959FP Maximum Ratings
| Parameter |
Symbol |
Ratings |
Unit |
Remark |
| Supply voltage |
VCC |
7.0 |
V |
note 1 |
| Power dissipation |
Pd |
200 |
mW |
Ta=25°C |
| Thermal derating |
K |
3.3 |
mW/°C |
Ta25°C |
| Pin supply voltage |
VIF |
7.0 |
V |
Pin5, 7, 8, 9, 10, 11 |
| Another pin supply voltage |
VI/O |
−0.3 to VCC + 0.3 |
V |
note 2 |
| Output pin inflow current |
Isout |
0.5 |
mA |
NPN open collector |
| Operating temperature |
Topr |
−10 to 60 |
°C |
|
| Storage temperature |
Tstg |
−30 to 85 |
°C |
|
| Surge voltage | Vsurge |
±1000V over |
C=100PF R=1.5K |
note 2 : As a principle,do not provide over supply voltage or under ground voltage.
M52959FP Features
• PSD on chip (Sensor size=0.5mm x 0.7mm)
• Wide operating supply voltage range Vcc=2.0V to 5.5V
• Built-in clamp circuit
• Wide operating supply voltage range Vcc=2.0V to 5.5V
• Built-in clamp circuit
M52959FP Typical Application
Auto focus control for the CAMERA
Sensor for short distance etc
Sensor for short distance etc

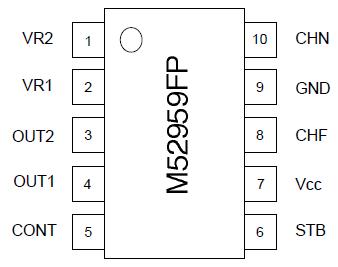

M52959FP Connection Diagram
M52959FP
