Purchase M52979F, In-stock M52979F From SeekIC.
Package Cooled:SOP D/C:01+
Part Number: M52979F
Package Cooled: SOP
D/C: 01+
Description: The M52979F is a semiconductor integrated circuit designed to detect quantity of light and used for ca...
- Table of contents:
M52979F
-
Suppliers
DataSheet
General Description
M52979F General Description
The M52979F is a semiconductor integrated circuit designed to detect quantity of light and used for cameras and illuminometers. Because a high-sensitivity SPD sensor is built in this IC, it is possible not only to reduce the space and expenses to mount it but also to conduct wide-ranging detection of light volume.
M52979F Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
VCC |
Supply Voltage |
|
-0.3 to 7.0 |
V |
|
PD |
Power Dissipation |
|
180 |
mW |
|
VIN |
Input Voltage |
|
-0.3 to VCC+0.3 |
V |
|
IQ(max) |
Output Current |
Pin VREF |
10 |
mA |
|
Pin TO and PO |
1 | |||
|
Topr |
Operating temperature |
|
-20 to 60 |
|
|
Tstg |
Storage Temperature |
|
30 to 85 |
|
|
Kq |
Thermal derating |
|
-3.0 |
mW/°C |
M52979F Features
• A 2-channel SPD sensor is built in.(1-channel for spot and one for average)
• Wide-ranging detection of light volume.
• A temperature sensor circuit and a temperature constant reference voltage circuit are built in.
• Small-sized transparent molded plastic package.
• Wide-ranging detection of light volume.
• A temperature sensor circuit and a temperature constant reference voltage circuit are built in.
• Small-sized transparent molded plastic package.
M52979F Typical Application
Automatic exposure control for cameras,illuminometers.

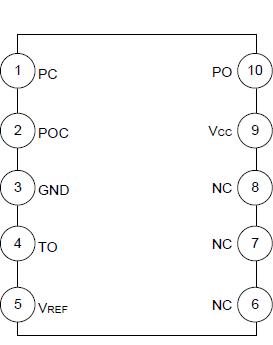

M52979F Connection Diagram
M52979F
PDF/DataSheet Download
- Datasheet: M52979F
- File Size: 33872 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
