Part Number: M54125P





Package Cooled: 4

D/C: SOP

Description: The M54125 is a semiconductor integrated circuit consisting of an amplifier for high-speed earth leaka...


Urgent Purchase

M54125P General Description


The M54125 is a semiconductor integrated circuit consisting of an amplifier for high-speed earth leakage circuit breaker.

M54125P Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
IS Supply voltage Average supply current frequency per cycle
0-6
mA
Is(SO) Supply surge current (Note 1)
0-12
mA
VILK ILK input voltage Pin VB serves as the voltage reference
-1.8-1.8
V
VIBL IBL input voltage
-0.3-6
V
VOUT OUT applied voltage When external voltage is applied
-0.3-4
V
Pd Power dissipation
160
mW
Topr Operating temperature
-20-80
°C
Tstg Storage temperature
-55-125
Note 1: Is(SG) current waveform, which is given in the following diagram, shall be one shot or less per minute.

M54125P Features

 `Satisfies JIS C 8371
 ` Temperature-stable input current trigger threshold (VLKT = 9mV)
 `Capable of detecting a lost phase on the neutral line
 `Economical, low external component count
 ` Highly resistant to noise and power surges
 `Wide operating temperature range (Ta = -20 +80°C)

M54125P Typical Application

High-speed earth-leakage circuit breakers

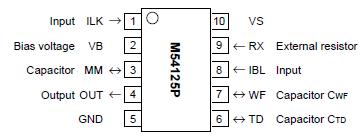

M54125P Connection Diagram

M54125P Connection Diagram

M54125P datasheet

M54125P
PDF/DataSheet Download

  • Datasheet: M54125P
  • File Size: 149610 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
