MFG:MITSUBISHI Package Cooled:DIP D/C:26
MFG: MITSUBISHI
Package Cooled: DIP
D/C: 26
Description: The M54128 is a semiconductor integrated circuit designed for high-speed type earth leakage breakers. ...
The M54128 is a semiconductor integrated circuit designed for high-speed type earth leakage breakers. This lC includes leakage and abnormal voltage detecting functions.
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| IS | Source current |
4 |
mA | |
| Vs MAX | Max. supply voltage |
15 |
V | |
| VIL | Input voltage | ILKI - VREF |
-1.4to+1.4 |
V |
| IIL | Input current | ILKI - VREF |
-5to+5 |
mA |
| IIG | Input current | VREF - GND |
10 |
mA |
| VIBL | Input voltage | IBLI - GND |
-0.3to+4.0 |
V |
| IIBL | Input current | IBLI - GND |
4 |
mA |
| Pd | Power dissipation |
200 |
mW | |
| Topr | Operating temperature |
-20to+85 |
| |
| Tstg | Storage temperature |
-55to+125 |
|
1.lmprovement of ability against unwanted tripping due to Iightning-surge.
• Adopt the two times counting system.
• lmprovement of ability against needless action due to lightningimpulse.
2.lt is a possible that cope with lEC owing to mode change.
• Adopt the 1.5 times counting system.
3.High input impedance :
• Filter circuit can be formed with externally attached C/R.
• lmprovement of ability against needless action due to high frequency and high harmonics.
4.High input sensitivity : VT = 6.5mVrms
5.Abnormal voltage detecting (neutral conductor open-phase protection) function :
• Neutral conductor open-phase protection at single-phase threewire system
• ln case of no use this function, stop this function and reduction of circuit current, possible.
6.Low voltage operation : 7 to12V (conventional Mitsubishi lCs : 12 to 20V)
7.Low current dissipation :
• In stand-by condition : 820mA typical (Vs = 9V, Ta = 25°C)
• When SCR is ON : 740mA typical (Vs = 9V, Ta = 25°C)
8. Highly stable design : Employment of circuits of which characteristics fluctuations resulting from changes in supply
voltage/ambient temperature are small

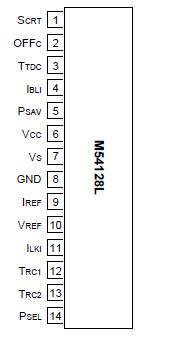

M54128L
