M5451
-
Suppliers
DataSheet
General Description
M5451 General Description
The M5450 and M5451 are monolithic MOS integrated circuits produced with an N-channel silicon gate technology. They are available in 40-pin dual in-line plastic packages.
M5451 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
| VDD | Supply Voltage |
-0.3to15 |
V |
| VI | Input Voltage |
-0.3to15 |
V |
| Vo(off) | Off State Output Voltage |
15 |
V |
| IO | Output Sink Current |
40 |
mA |
| Ptot | Total Package Power Dissipation at 25°C at 85°C |
1 560 |
W mW |
| Tj | Junction Temperature |
150 |
|
| Top | Operating Temperature Range |
-25to85 |
|
| Tstg | Storage Temperature Range |
-65to150 |
|
Stresses above those listed under "Absolute Maximum Ratings" may causes permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
M5451 Typical Application
·MICROPROCESSOR DISPLAYS .
·INDUSTRIAL CONTROL INDICATOR .
·RELAY DRIVER
·INSTRUMENTATION READOUTS

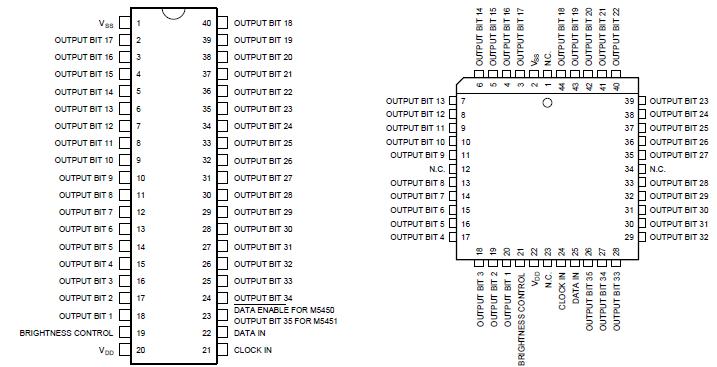

M5451 Connection Diagram
M5451
PDF/DataSheet Download
- Datasheet: M5451
- File Size: 146289 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
