M5481

Features: ·2 DIGIT LED DRIVER (14 segments)· CURRENT GENERATOR OUTPUTS (no registor required)· CONTINUOU BRIGHTNESS CONTROL· SERIAL DATA INPUT· DATA ENABLE· WIDE SUPPLY VOLTAGE OPERATION· TLL COMPATIBILITY· APPLICATION EXAMPLES· MICROPROCESSOR DISPLAYS· INDUSTRIAL CONTROL INDICATOR· RELAY DRIVER· ...

product image

M5481 Picture
See larger image
SeekIC No. : 004405782 Detail

M5481: Features: ·2 DIGIT LED DRIVER (14 segments)· CURRENT GENERATOR OUTPUTS (no registor required)· CONTINUOU BRIGHTNESS CONTROL· SERIAL DATA INPUT· DATA ENABLE· WIDE SUPPLY VOLTAGE OPERATION· TLL COMPAT...

M5481 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5481
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·2 DIGIT LED DRIVER (14 segments)
· CURRENT GENERATOR OUTPUTS (no registor required)
· CONTINUOU BRIGHTNESS CONTROL
· SERIAL DATA INPUT
· DATA ENABLE
· WIDE SUPPLY VOLTAGE OPERATION
· TLL COMPATIBILITY
· APPLICATION EXAMPLES
· MICROPROCESSOR DISPLAYS
· INDUSTRIAL CONTROL INDICATOR
· RELAY DRIVER
· INSTRUMENTATION READOUTS

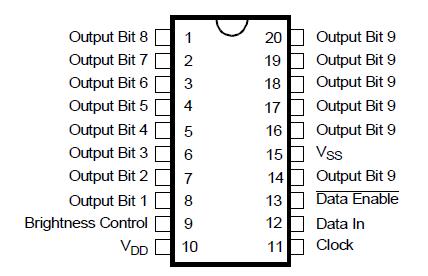

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Supply Voltage
0.3 to 15
V
VI
 Input Voltage
0.3 to 15
V
VO (off)
 Off State Output Voltage
15
V
IO
 Output Sink Current
40
mA
Ptot
 Total Package Power Dissipation at 25 °C
t 85 °C
1.5
800
w
mW
Tj
 Junction Temperature
150
°C
Toper
 Operating Temperature Range
25, + 85
°C
Tstg
 Storage Temperature Range
65, + 150
°C
Stresses exceeding those listed under "Absolute Maximum Ratings" may cause permanent damage to the device and affect its reliability.


Description

The M5481 is a monolithic MOS integrated circuit produced with a N-channel silicon gate technology.

It uses the M5450 die packaged in a 20-pin plastic package copper frame, making it ideal for a 1-digit display. A single pin controls the LED display brightness by setting a reference current through a variable resistor connected either to VDD or to a separate supply of 13.2V maximum.

The M5481 is a pin-to-pin replacement of the NS MM 5481.
