Purchase M54974P, In-stock M54974P From SeekIC.
MFG:MIT Package Cooled:DIP
Part Number: M54974P
MFG: MIT
Package Cooled: DIP
Description: The M54974P is a semiconductor integrated circuit consisting of 12 stages of CMOS shift registers and ...
- Table of contents:
M54974P
-
Suppliers
DataSheet
General Description
M54974P General Description
The M54974P is a semiconductor integrated circuit consisting of 12 stages of CMOS shift registers and latches with serial inputs and serial or parallel outputs. It is based on Bi-CMOS process technology, and has 12 bipolar drivers at the parallel outputs.
M54974P Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
VCC |
Supply Voltage | P-VCC, L-VCC |
-0.5 8 |
V |
|
VI |
Input Voltage | S-IN, LATCH, T, EN |
-0.5 VCC+0.5 |
V |
|
VO |
Output voltage | S-OUT |
-0.5 VCC+0.5 |
V |
| O1 O12 : OFF |
-0.5 30 | |||
|
IO |
Output current | O1 O12 |
400 |
mA |
|
Pd |
Power dissipation | Ta=25°C |
2.5 |
W |
|
Toper |
Operating temperature |
-20 75 |
°C | |
|
Tstg |
Storage temperature |
-55 125 |
°C |
M54974P Features
` Serial input and serial or parallel output
` Serial output enables cascade connection
` Built-in latch for each stage
`Enable input provides output control
`Low supply current (standby current ICC10mA)
`Serial I/O level is compatible with typical CMOS devices
`Driver features: High withstand voltage (BVCEO30V)
Capable of large drive currents (IO(max)=300mA)
`Wide operating temperature range Ta=-20 +75°C
` Serial output enables cascade connection
` Built-in latch for each stage
`Enable input provides output control
`Low supply current (standby current ICC10mA)
`Serial I/O level is compatible with typical CMOS devices
`Driver features: High withstand voltage (BVCEO30V)
Capable of large drive currents (IO(max)=300mA)
`Wide operating temperature range Ta=-20 +75°C
M54974P Typical Application
Dot drivers for thermal print heads. Serial/parallel conversion. Drivers for relay and solenoids.

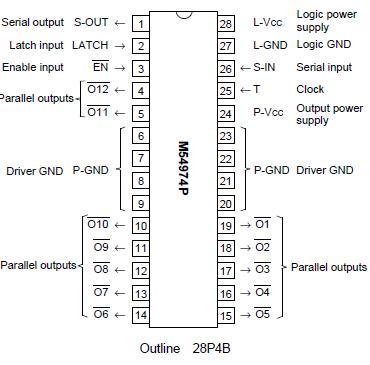

M54974P Connection Diagram
M54974P
PDF/DataSheet Download
- Datasheet: M54974P
- File Size: 670657 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
