Description: The M54977P is a semiconductor integrated circuit fabricated using Bi-CMOS technology. It contains a s...
- Table of contents:
M54977P
-
Suppliers
DataSheet
General Description
M54977P General Description
The M54977P is a semiconductor integrated circuit fabricated using Bi-CMOS technology. It contains a serial input to serial/parallel output 12-bit CMOS shift register and CMOS latch as well as bipolar 12-bit parallel-output driver.
M54977P Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
VCC |
Supply Voltage |
0 7 |
V | |
|
VI |
Input Voltage |
0 VCC |
V | |
|
VO |
Output voltage | S-OUT |
0 VCC |
V |
| O1 O12 : OFF |
0 30 | |||
|
IO |
Output current |
250 |
mA | |
|
Pd |
Power dissipation | Ta=25°C |
1.25 |
W |
|
Toper |
Operating temperature |
-20 75 |
°C | |
|
Tstg |
Storage temperature |
-55 125 |
°C |
M54977P Features
` Serial input to serial/parallel output
` Cascade connections possible through serial output
`Latch circuit included for each stage
` Enable input for output control
`Low supply current .................................. ICC10mA at standby
` Serial input/output level is compatible with standard CMOS
`Driver : Withstand voltage ...................................... BVCEO 30V
Large drive current ................................ (IO(max)=200mA)
`Wide operating temperature range ..................... Ta=-20 +75°C
` Cascade connections possible through serial output
`Latch circuit included for each stage
` Enable input for output control
`Low supply current .................................. ICC10mA at standby
` Serial input/output level is compatible with standard CMOS
`Driver : Withstand voltage ...................................... BVCEO 30V
Large drive current ................................ (IO(max)=200mA)
`Wide operating temperature range ..................... Ta=-20 +75°C
M54977P Typical Application
Thermal printer head dot driver, Serial-to parallel conversion, Relay, solenoid driver

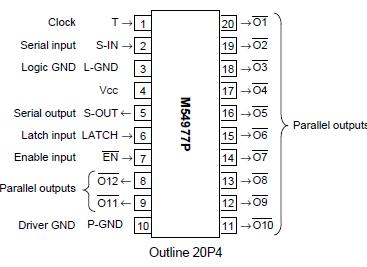

M54977P Connection Diagram
