M54/74HCT162/163

M54/74HCT160 Decade, Asynchronous Clear
M54/74HCT161 Binary, Asynchronous Clear
M54/74HCT162 Decade, Synchronous Clear
M54/74HCT163 Binary, Synchronous Clear

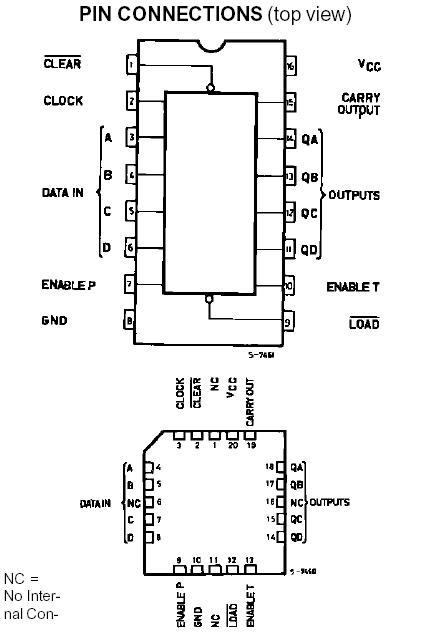

The M54/74HCT160, 161, 162 and 163 are high speed CMOS SYNCHRONOUS PRESETTABLE COUNTERS fabricated with silicon gate C2MOS technology. They have the same high speed operation similar to equivalent LSTTL while maintaining the CMOSlow power dissipation. The M54/74HCT160/162 are BCDDecade counters and the M54/74HCT161/163 are 4 bit binary
counters. The CLOCK input is active on the rising edge. Both LOAD and CLEAR inputs are active Low.

Presetting of all four IC's is synchronous on the rising edge of the CLOCK. The function on the M54/74HCT162/163 is synchronous to CLOCK, while the M54/74HCT160/161 counters are cleared asynchronously. Two enable inputs (TE and PE) andCARRYoutput are provided to enable easycascading of counters, which facilities easy implementation of N-bit counters without using external gates. This integrated circuit has input and output characteristicsthat are fully compatible with 54/74 LSTTL logic families. M54/74HCT devices are designed to directly interface HSC2MOS systems with TTL and NMOS components. They are also plug in replacements for LSTTL devices giving a reduction of power consumption. All inputs are equipped with
