M56620AP

Features: ` Enable input for output control` Low supply current .......................................ICC10A at standby` Input level is compatible with standard CMOS` Driver: Withstand voltage ...........................................BVCEO 50VLarge drive current ...................................

product image

M56620AP Picture
See larger image
SeekIC No. : 004406004 Detail

M56620AP: Features: ` Enable input for output control` Low supply current .......................................ICC10A at standby` Input level is compatible with standard CMOS` Driver: Withstand voltage .......

M56620AP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M56620AP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Enable input for output control
` Low supply current .......................................ICC10A at standby
` Input level is compatible with standard CMOS
` Driver: Withstand voltage ...........................................BVCEO 50V
                Large drive current .................................. (IO(max)=500mA)
` Wide operating temperature range ..................... Ta=-20 +75°C






Application

Thermal printer head dot driver, Relay driver, Solenoid driver


Pinout

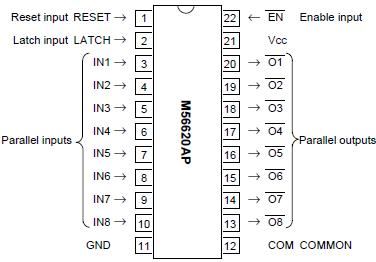

Connection Diagram


Specifications

Symbol
Parameter
 Conditions
Ratings
Unit
Vcc Supply voltage
-0.3to+8
V
VI Input voltage
-0.3toVcc+0.3
V
Vo Output voltage Output: OFF
-0to+50
V
Io Output current Output: ON
500
mA
Pd Power dissipation Ta=25°C
1025
W
Topr Operating temperature
-20to+75
°C
Tstg Storage temperature
-55to+125



Description

The M56620AP is a semiconductor integrated circuit fabricated using Bi-CMOS technology. It contains bipolar 8 output drivers of CMOS latch.
