Part Number: M58LW032D
Description: Stressing the device above the ratings listed in Table 11, Absolute Maximum Ratings, may cause permane...
- Table of contents:
M58LW032D
-
Suppliers
DataSheet
General Description
M58LW032D General Description
Stressing the device above the ratings listed in Table 11, Absolute Maximum Ratings, may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
M58LW032D Maximum Ratings
|
Symbol |
Parameter |
Value
|
Unit | |
|
Min |
Max | |||
|
TBIAS |
Temperature Under Bias |
40 |
125 |
°C |
|
TSTG |
Storage Temperature |
55 |
150 |
°C |
|
VIO |
Input or Output Voltage |
0.6 |
VDDQ +0.6 |
V |
|
VDD, VDDQ |
Supply Voltage |
0.6 |
5.0 |
V |
|
IOSC |
Output Short-circuit Current |
100(1) |
mA | |
M58LW032D Features
` WIDE x8 or x16 DATA BUS for HIGH
BANDWIDTH
` SUPPLY VOLTAGE
VDD = VDDQ = 2.7 to 3.6V for Program, Erase nd Read operations
` ACCESS TIME
Random Read 90ns,110ns
Page Mode Read 90ns/25ns, 110ns/25ns
` PROGRAMMING TIME
16 Word Write Buffer
12ms Word effective programming time
` 32 UNIFORM 64 KWord/128KByte MEMORYBLOCKS
` ENHANCED SECURITY
Block Protection/ Unprotection
VPEN signal for Program Erase Enable
128 bit Protection Register with 64 bit Unique ode in OTP area
` PROGRAM and ERASE SUSPEND
` 128 bit PROTECTION REGISTER
` COMMON FLASH INTERFACE
` 100, 000 PROGRAM/ERASE CYCLES per LOCK
` ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Device Code M58LW032D: 0016h
BANDWIDTH
` SUPPLY VOLTAGE
VDD = VDDQ = 2.7 to 3.6V for Program, Erase nd Read operations
` ACCESS TIME
Random Read 90ns,110ns
Page Mode Read 90ns/25ns, 110ns/25ns
` PROGRAMMING TIME
16 Word Write Buffer
12ms Word effective programming time
` 32 UNIFORM 64 KWord/128KByte MEMORYBLOCKS
` ENHANCED SECURITY
Block Protection/ Unprotection
VPEN signal for Program Erase Enable
128 bit Protection Register with 64 bit Unique ode in OTP area
` PROGRAM and ERASE SUSPEND
` 128 bit PROTECTION REGISTER
` COMMON FLASH INTERFACE
` 100, 000 PROGRAM/ERASE CYCLES per LOCK
` ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Device Code M58LW032D: 0016h

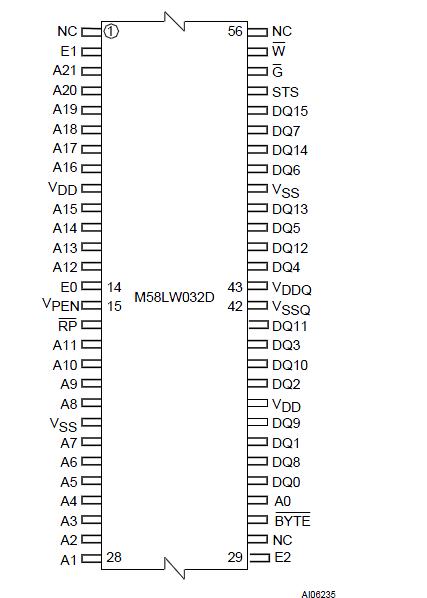

M58LW032D Connection Diagram
M58LW032D
