Part Number: M61303FP
MFG: MIT
Description: M61303FP is integrated Circuit f or LCD Display Monitor.It is controlled IIC BUS and Band Wide is 180M...
- Table of contents:
M61303FP
-
Suppliers
DataSheet
General Description
M61303FP General Description
M61303FP is integrated Circuit f or LCD Display Monitor.It is controlled IIC BUS and Band Wide is 180MHz.
It includes OSD Blanking ,OSD Mixing,Wide Band Amplif ier,Main/Sub Contrast Main/Sub Brightness ,and 2 Input routes.
Vcc Voltage is 5V and Flat package is used.then it is the suitable to LCD monitor.
M61303FP Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Unit |
| Vcc | Supply voltage |
6.0 |
V |
| Pd | Power dissipation |
2900 |
mW |
| Topr | Ambient temperature |
-20 to +85 |
°C |
| Tstg | Storage temperature |
-40 to +150 |
|
| Vopr | Recommended supply |
50 |
V |
| Vopr' | voltage range |
407to5.3 |
V |
M61303FP Features
1.Frequency :RGB 180MHz(at -3dB)
Band Width OSD 80MHz
2.Input :RGB Input dy namic range:Max1VP-Ppositiv e
2 input routes is changed by IIC BUS
RGB OSD 3.5VP-P--- 5.0VP-P(positiv e)
OSD BLK 3.5VP-P---5.0VP-P(positiv e)
3.Output :RGB 2.2VP-P (Max)
OSD 2.0VP-P (Max)
Output dy namic range 0.5--- 2.2V
It can driv e 14pF
4.Contrast :Both of sub and main contrast are controlled by IIC Bus(8bit).
Control Range :-15dB--- +15dB.
5.Brightness :Both of sub and main contrast are controlled by IIC Bus(8bit).
Control Range :0.5V ---2.2V.
6.OSD Adjust :2 Control Ranges (Max1VP-P or Max2VP-P ) are able to be changed by IIC Bus.

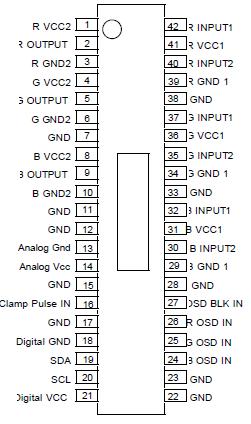

M61303FP Connection Diagram
M61303FP
