Product Details

Description

Features:

`Built-in 4ch input selector.
`Built-in input volume (2dB step/3 bit)
`IC for Dolby-pro-logic Interface.
`Built-in Surround (ON/OFF,High/Middle/Low <3 variation>)
`Tone control (Bass/Mid/Treble)
`Built-in Loudness.
`Vocal cut (Surround OFF setting only)
`Main Volume (36 step 0 to -80dB,- )
`Microcomputer Interface.

Pinout

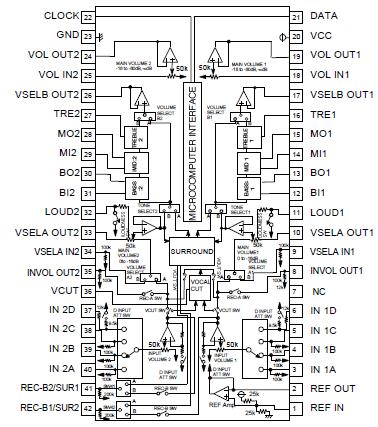

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Iimits	Unit
Supply voltage	Vcc		6.0	V
Power Consumption	Pd	Ta25°C	960	mW
Thermal derating	K	Ta>25°C	9.6	mW/°C
operating temperature	Topr		-20to+75	°C
Storage temperature	Tstg		-40to+125	°C

Description

The M61504FP is an optimum digital sound controller IC for home audio.It has a 4ch input selector, input volume, surround (3 variation), tone control (3 band), loudness, Vocal cut and 2ch master volume.

It can control all of these function with serial data.
