Part Number: M62050FP
Description: M62050P/FP is a voltage threshold detector designed for detection of 3V supply voltage and generation ...
- Table of contents:
M62050FP
-
Suppliers
DataSheet
General Description
M62050FP General Description
M62050P/FP is a voltage threshold detector designed for detection of 3V supply voltage and generation of a system reset pulse. It is suitable for microcontroller systems.
The IC, a supervisor of the MCU operations, dissipates low current of 0.6mA (typ) during normal operations of the MCU systems.
It has 2 selectable threshold voltages, which allows applying it to a high precision system design.
M62050FP Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Unit |
| Vcc | Power supply voltage |
15 |
V |
| VIN | Input voltage |
-0.3to5 |
V |
| VOUT | Output voltage |
15 |
V |
| IOUT | Output current |
10 |
mA |
| Pd | Internal power dissipation |
625 |
mW |
| K | Heat reduction rate |
4.40 |
mW/°C |
| Topr | Operating ambient temperature |
-20to+75 |
°C |
| Tstg | Storage temperature |
-55to+125 |
M62050FP Features
• Watchdog timer (supervisor for 2 system voltages)
• Power-on reset timer
• Low current consumption 0.6mA (typ) at Vcc = 3V
• Wide supply voltage range Vcc = 7V (max)
• Power-on reset timer
• Low current consumption 0.6mA (typ) at Vcc = 3V
• Wide supply voltage range Vcc = 7V (max)
M62050FP Typical Application
Supervisor for microcontroller systems

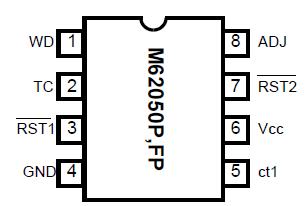

M62050FP Connection Diagram
M62050FP
PDF/DataSheet Download
- Datasheet: M62050FP
- File Size: 43719 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
