M62213P/FP is designed as a general purpose high-speed PWM control IC.
This small 10 pin package contains many function and protection circuits allowing simpler peripheral circuits and
compact set design.
This IC can operate high speed switching (700kHz Max) with high speed PWM comparator and current limiting circuit.
M62213FP Maximum Ratings
|
Parameter |
Symbols |
Conditions |
Ratings |
Units | |
| supply voltage |
Vcc |
36 |
V | ||
| Out terminal current |
IOUT |
Continuous |
150 |
mA | |
| Peak |
1.0 |
A | |||
| CT terminal supply voltage |
VCT |
36 |
V | ||
| EA IN terminal supply voltage |
VEA IN |
10 |
V | ||
| CLM terminal supply voltage |
VCLM |
-0.3 to+4.0 |
V | ||
| Power dissipation |
Pd |
Ta=25°C |
440 |
mW | |
| Thermal derating |
Ktheta |
Ta 25°C |
3.52 |
mW/°C | |
| Operating temperature |
Topr |
-20to85 |
|||
| Storage temperature |
Tstg |
-40to150 |
|||
M62213FP Features
• 700kHz operation to MOS- FET
-- Output current Io= ±1A
-- Totem pole output
• Timer type latch protection circuit with OVP
• Soft start operation is possible (with dead time control)
• Built-in OPAmp for feedback control (photo coupler can be driven)
• High speed pulse-by-pulse current limiting
• Small size 10-pin SOP package
-- Output current Io= ±1A
-- Totem pole output
• Timer type latch protection circuit with OVP
• Soft start operation is possible (with dead time control)
• Built-in OPAmp for feedback control (photo coupler can be driven)
• High speed pulse-by-pulse current limiting
• Small size 10-pin SOP package
M62213FP Typical Application
• Switching Regulator
• DC-DC Converter
• DC-DC Converter

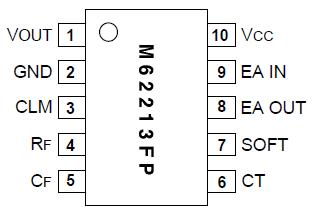

M62213FP Connection Diagram
M62213FP
PDF/DataSheet Download
- Datasheet: M62213FP
- File Size: 70278 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
