Part Number: M62220FP
MFG: MIT
D/C: 00+
Description: The M62220 is a general purpose DC-DC converter which provides a 3.3V fixed output voltage....
- Table of contents:
M62220FP
-
Suppliers
DataSheet
General Description
M62220FP General Description
The M62220 is a general purpose DC-DC converter which provides a 3.3V fixed output voltage.
It is possible to simplify the peripheral circuit and to design compact and low cost sets because this IC, housed in a small 5- or 8-pin package includes necessary peripheral components.
Especially this is most suitable for CD-ROM, Disk Drive sets and PDA as a converter from 5V to 3.3V .
M62220FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Rating |
Unit | |
| Vcc | Supply voltage |
16 |
V | ||
| Io | Output current |
100 |
mA | ||
| Pd | Power dissipation | Ta=25°C | 5-pin SIP |
450 |
mW |
| 8-pin SOP |
440 |
mW | |||
| KTHETA | Thermal derating | Ta>25°C | 5-pin SIP |
4.5 |
mW/ °C |
| 8-pin SOP |
4.4 |
mW/ °C | |||
| Topr | Operating temperature |
-20to+85 |
°C | ||
| Tstg | Storage temperature |
-40to+125 |
°C | ||
M62220FP Features
` Wide operation supply voltage range ................ 4 to 15V
` Low power consumption.................................900A(max.)
` Built-in oscillator without external components (110kHz typ.)
` Built-in over current protection circuit
` Small size 5-pin SIP and 8-pin SOP packages
` Low power consumption.................................900A(max.)
` Built-in oscillator without external components (110kHz typ.)
` Built-in over current protection circuit
` Small size 5-pin SIP and 8-pin SOP packages
M62220FP Typical Application
CD-ROM, PDA, general purpose electric products

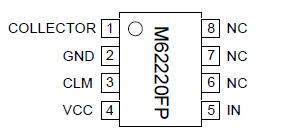

M62220FP Connection Diagram
M62220FP
PDF/DataSheet Download
- Datasheet: M62220FP
- File Size: 25660 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
