Part Number: M62281FP
MFG: MIT
Package Cooled: P2
Description: M62281P/FP is designed as a high speed current mode PWM control IC.This small10 pin package co...
- Table of contents:
M62281FP
-
Suppliers
DataSheet
General Description
M62281FP General Description
M62281P/FP is designed as a high speed current mode PWM control IC.
This small10 pin package contains many functions and protection circuits allowing simpler peripheral circuit and
compact set design.
This IC can operate high speed switching (700kHz max.) with high speed current sense comparator and current
limiting circuit.
M62281FP Maximum Ratings
|
Symbol |
Parameter |
Condition |
Ratings |
Unit | |
|
Vcc |
Supply voltage |
36 |
V | ||
|
IOUT |
Output current | Continuous |
150 |
mA | |
| Peak |
1.0 |
A | |||
|
VCT |
CT terminal Supply voltage |
36 |
V | ||
|
VEA IN |
EA IN terminal Supply voltage |
10 |
V | ||
|
VCLM |
CLM terminal Supply voltage |
- 0.3 to+ 4.0 |
V | ||
|
VCS |
CURENT SENSE terminal Supply voltage |
- 0.3 to + 5.8 |
V | ||
|
Pd |
Power dissipation |
P |
1500 |
mW | |
|
FP |
440 | ||||
|
Ktheta |
Thermal derating |
P |
12 |
mW/°C | |
|
FP |
3.52 | ||||
|
Topr |
Operating temperature |
-20to85 |
|||
|
Tstg |
Storage temperature |
-40to150 |
|||
M62281FP Features
`700kHz applicable to MOS-FET
-- Output current Io(peak) = ±1A
-- Totem pole output
`CURRENT SENSE terminal separate form CLM terminal makes SMPS strong in noise.
`High speed pulse-by-pulse current limiting
`Timer type latch protection circuit with OVP(external reset is possible)
`Soft start operation is possible (with dead time control)
`Built-in OPAmp for feedback control (photo coupler can be driven)
`Small start-up current 180A
`Start-up voltage 12.5V, Stop voltage 8.3V
-- Output current Io(peak) = ±1A
-- Totem pole output
`CURRENT SENSE terminal separate form CLM terminal makes SMPS strong in noise.
`High speed pulse-by-pulse current limiting
`Timer type latch protection circuit with OVP(external reset is possible)
`Soft start operation is possible (with dead time control)
`Built-in OPAmp for feedback control (photo coupler can be driven)
`Small start-up current 180A
`Start-up voltage 12.5V, Stop voltage 8.3V
M62281FP Typical Application
• Switching Regulator
• DC-DC converter
• DC-DC converter

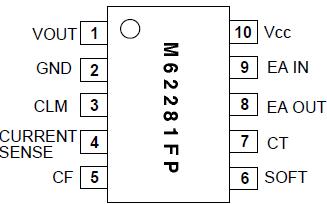

M62281FP Connection Diagram
M62281FP
