Description: The M62356P is an integrated circuit semiconductor of C-MOS structure with 8 channels of built-in D-A ...
- Table of contents:
M62356P
-
Suppliers
DataSheet
General Description
M62356P General Description
The M62356P is an integrated circuit semiconductor of C-MOS structure with 8 channels of built-in D-A converters.
The input data is a easy-to-use 3-wires serial data transfer method and it is able to cascading serial use with Do terminal.
M62356P Maximum Ratings
| Symbol | Parameter | Conditions | Ratings | Unit |
| VDD | Supply voltage | -0.3~7.0 | V | |
| VrefU | D-A converter upper reference voltage | 12.5 | V | |
| VIN | Input voltage | -0.3~Vcc+0.3 | V | |
| IDO | Output Voltage | -5~+5 | mA | |
| IAO | D-A converter output current | 10 | µA | |
| Topr | Operating Temperature | -20~+75 | °C | |
| Tstg | Storage Temperature | -40~+125 | °C |
M62356P Features
•Digital data transfer format 3-wires serial data transfer method
•Output voltage range 0V to 12V
•Short setting time
•D-A converter high level reference voltage is possess two input terminal then two reference voltage is possible to input.
Digital voltage supply........................VDD=5V±10%
M62356P Typical Application
Conversion from digital control data to analog control data for home-use and industrial equipment.
Automatic adjustment by combination with EEPROM and microcomputer(replacement of conventional half-fixed resistor).
Signal gain control of DISPLAY-MONITOR or CTV.

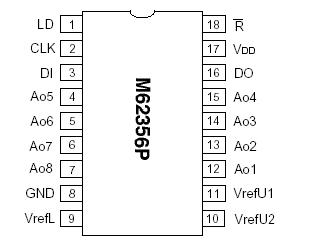

M62356P Connection Diagram
M62356P
