General Description
M62358FP General Description
The M62358 is a 12-channel 8-bit voltage output digital to analog converter.
The M62358 includes data latch circuit and gain change circuit of output amplifiers.
Input data is a easy-to-use three-wires serial interface.It is able to cascading serial use with Do terminal.
Gain set up data change a case the each channel`s output voltage range is change ,and each channel`s output voltage range is able to change severally make use of gain set up data.
M62358FP Maximum Ratings
| Symbol | Parameter | Conditions | Ratings | Unit |
| VCC | Supply voltage | -0.3~13.5 | V | |
| VDD | Supply voltage | -0.3~7.0 | V | |
| VrefU | D-A converter upper reference voltage | VDD | V | |
| VIN | Input voltage | -0.3~VDD+0.3 | V | |
| IDO | Output Voltage | -5~+5 | mA | |
| IAO | Buffer amplifier output current range | -5~+5 | mA | |
| Topr | Operating Temperature | -20~+85 | °C | |
| Tstg | Storage Temperature | -40~+125 | °C |
M62358FP Features
•All channel includes gain change latch circuit with output amplifiers.
•14-bit serial data input
•Built-in reset circuit
•14-bit serial data input
•Built-in reset circuit
M62358FP Typical Application
Conversion from digital control data to analog control data for home-use and industrial equipment.
Automatic adjustment by combination with EEPROM and microcomputer(replacement of conventional half-fixed resistor).
Signal gain control of DISPLAY-MONITOR or CTV.

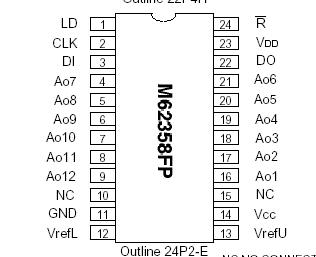

M62358FP Connection Diagram
M62358FP
