Part Number: M62393P
MFG: MIT
Package Cooled: DIP
Description: The M62393 is an integrated circuit semiconductor of CMOS structure with 8 channels of built-in D-A co...
- Table of contents:
M62393P
-
Suppliers
DataSheet
General Description
M62393P General Description
The M62393 is an integrated circuit semiconductor of CMOS structure with 8 channels of built-in D-A converters with output buffer operational amplifiers.
The input is 2-wires serial method is used for the transfer format of digital data to allow connection with a microcomputer with minimum wiring.
The output buffer operational amplifier employs AB class output circuit with sync and source drive capacity of 1.0mA or more,and it operates in the whole voltage range from VrefU to ground.
And because of connects maximum 8 pieces to 64 channels control.
M62393P Maximum Ratings
|
Symbol |
Parameter |
conditions |
Ratings |
Unit |
|
VCC |
Supply voltage |
0.3 to 7.0 |
V | |
|
VDD |
Supply voltage |
0.3 to 7.0 |
V | |
|
VrefU1,2 |
D-A converter high level reference voltage |
0.3 to 7.0 |
V | |
|
VIN |
Input voltage |
0.3 toVDD+0.3 |
V | |
|
Vo |
Output voltage |
0.3 toVDD+0.3 |
V | |
|
Pd |
Power dissipation |
990(DIP)/590(FP) |
mW | |
|
Topr |
Operating temperature |
-20 to +85 |
°C | |
|
Tstg |
Storage tempareture |
55 to 125 |
°C |
M62393P Features
•Digital data transfer format I2 C-bus serial data method
•Output buffer operational amplifier
it operates in the whole voltage range from VrefU(0 to 5V)to ground.
•High output current drive capacity ±1.0mA over
•Preparation two high level reference voltage terminal because there are two high level reference voltage terminal,it can set up two kinds differ voltage range.
•Output buffer operational amplifier
it operates in the whole voltage range from VrefU(0 to 5V)to ground.
•High output current drive capacity ±1.0mA over
•Preparation two high level reference voltage terminal because there are two high level reference voltage terminal,it can set up two kinds differ voltage range.
M62393P Typical Application
Conversion from digital control data to analog control data for home-use and industrial equipment.
Signal gain control or automatic adjustment of DISPLAYMONITOR or CTV.
Signal gain control or automatic adjustment of DISPLAYMONITOR or CTV.

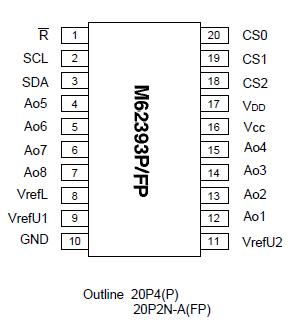

M62393P Connection Diagram
M62393P
