Five Points

Part Number: M62445FP



MFG: MIT

Package Cooled: QFP-64

D/C: 98+



Urgent Purchase

M62445FP Features

<Dynamic Bass Boost>
Maximum boost level setting was adapted input level.
Maximum boost level setting:20dB,15dB,10dB,5dB,0dB(OFF)
<Input Selector>
Tch stereo input mode (A,B,C,D,E)
<Tone controlle>
Bass/Treble(±10dB,8dB,6dB,4dB,2dB,flat)
<Gain controlle>
Through gain controlle(22dB ~ 36dB;2dB/step)
<Function mode select>
Monoral(L,R,L+R),Vocal cut
<Electric volume>
0dB ~ -87dB(1dB/Step), -
<Expansion output port>
NPN open colector output (8pcs),3-state output (2pcs)

M62445FP Typical Application

Mini-Compo,Radio cassette etc.

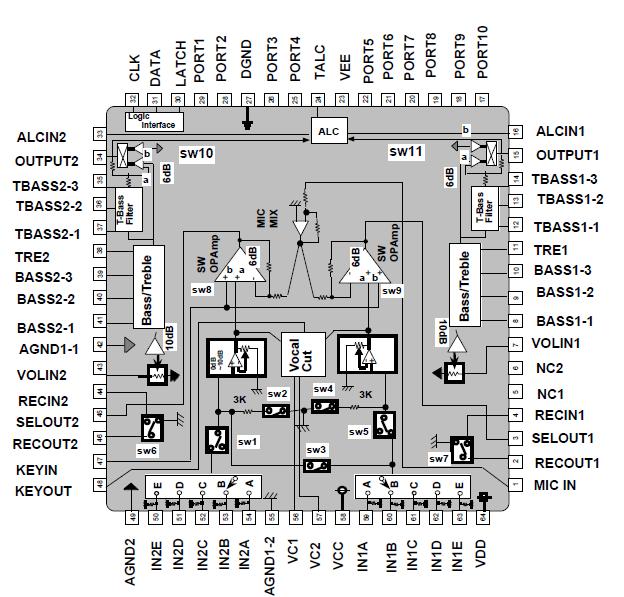

M62445FP Connection Diagram

M62445FP Connection Diagram

M62445FP datasheet

M62445FP
PDF/DataSheet Download

  • Datasheet: M62445FP
  • File Size: 223833 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
