M63016FP_1242638
-
Suppliers
DataSheet
General Description
M63016FP_1242638 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | RATING | UNIT |
| 5VCC | 5V power supply |
Focus and Tracking power supply | 7 | V |
| VM1 | Motor power supply 1 | Spindle power supply | 15 | V |
| VM23 | Motor power supply 23 | Slide and Loading power supply | 15 | V |
| Io A | Motor Output Current A | Spindle output current *note 1 with external shottky diode |
1.5 | A |
| Io B | Motor Output Current B | Slide output current *note 1 with external shottky diode |
1.2 | A |
| Io C | Motor Output Current C |
Focus,Tracking and Loading output current *note 1 |
1.0 | A |
| VIN | maximum input voltage of terminals |
MU1,MU2,MU3,Hw-,Hw+,Hv-,Hv+,Hu-,Hu+,REF, Spin,TOIN,FOIN,OSC,Opin -,LOIN -,LOIN+ |
0~ 5VCC | V |
| Pt | Power dissipation | Free Air and on the grass epoxy board | 2.6 | W |
| K | Thermal dera ting | Free Air and on the grass epoxy board | 20.8 | mW / |
| Tj | Junction temperature | 150 | ||
| To pr | Operating temperature | -20~ +75 | ||
| Tstg | Strage temperature | -40~+150 |
The Spindle and Slide output terminal is needed external shottky diode between each output and GND
when it is used above 0.6A. Description(IoA) is case of with external shottky diode.
(The Schottky diodes are not necessary IN some application. )
M63016FP_1242638 Features
This IC is 1 chip driver IC for Spindle Motor and 4 channel actuators. All of the Motor and actuator of optical disk drive system (CD-ROM etc.) can be driven by only this IC.
This IC has current control drive system for Focus,Tracking, Spindle and Slide channel drive, also has a direct PWM control system for Spindle and Slide channels drive due TO reducing IC power dissipation.
This IC has three voltage supply terminals(for Spindle ,Slide/Loading and Focus/Tracking), and three voltage supply can be set separately.
Further more this IC has an operational amplifier for Slide input, FG amplifier, thermal shut down circuit, standby circuit, channel SELECT function,reverse rotation detect circuit and Short braking SELECT.
M63016FP_1242638 Typical Application
CD-ROM, DVD, DVD-ROM, DVD-RAM,Optical disc related system,etc

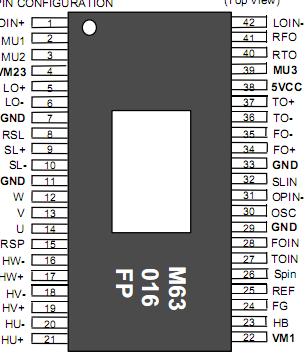

M63016FP_1242638 Connection Diagram
