General Description
M63840P General Description
M63840P/FP/KP are eight-circuit output-sourcing Darlington transistor array .The circuits are made of PNP and NPN transistors. Both the semiconductor integrated circuits perf orm high-current driv ing with extremely low input-current supply .
M63840P Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
| VCEO VS VI IO IF VR Pd Topr Tstg |
Collector-emitter v oltage Supply v oltage Input v oltage Output current Clamping diode f orward current Clamping diode rev erse v oltage Power dissipation Operating temperature Storage temperature |
Output, H Current per circuit output, L |
-0.5~+40 40 -0.5~+15 -500 -500 35 1.79 1.10 0.68 -40~+85 -55~+125 |
V V V mA mA V W | |
| Ta= 25, when mounted on board |
M63840FP M63840KP M63840P | ||||
M63840P Features
`High breakdown v oltage (BVCEO 40V)
`High-current driv ing (IO(max)=-500mA )
`Driv ing av ailable with TTL output or C-MOS IC output
`With output clamping diodes
`Wide operating temperature range (Ta= -40~+85)
`Output current-sourcing ty pe
`High-current driv ing (IO(max)=-500mA )
`Driv ing av ailable with TTL output or C-MOS IC output
`With output clamping diodes
`Wide operating temperature range (Ta= -40~+85)
`Output current-sourcing ty pe
M63840P Typical Application
·Driv es of relay s, printers, LEDs, f luorescent display
·tubes and lamps. and interf aces between MOS-bipolar
·logic sy stems and relay s, solenoids, of small motors.
·tubes and lamps. and interf aces between MOS-bipolar
·logic sy stems and relay s, solenoids, of small motors.

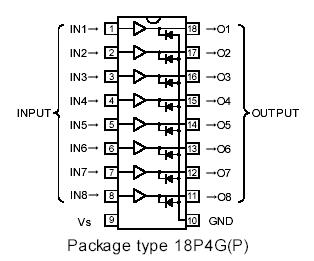

M63840P Connection Diagram
M63840P
PDF/DataSheet Download
- Datasheet: M63840P
