M64892AFP General Description


The M64892 is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR using Bip process.

It contains the prescaler with operating up to 1.0GHz, 4 band drivers and Op. Amp for direct tuning.

M64892AFP Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
Vcc1
 Super voltage1 Pin3
6.0
V
Vcc2
 Super voltage2 Pin4
14.4
V

Vcc3

 Supply voltage 3 Pin11
36.0
V
VI
 Input voltage Not to exceed VCC1
6.0
V
Vo
 Output voltage LD output
6.0
V
VBSOFF
 Voltage applied when the band output is
OFF
14.4
V
IBSON
 Band output current per 1 band output circuit
50.0
mA
tBSON
 ON the time when the band output is ON 50mA per 1 band output circuit
3circuits are pn at same time.
10
sec
Pd
 Power dissipation Ta=+75 °C (SOP/SSOP)
FP: 450 (GP: 470)
mW
Topr
 Operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+125
°C

M64892AFP Features

• 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)
• Built-in Op. Amp for direct tuning voltage output (33V)
• Low power dissipation (Icc=20mA, Vcc1=5V)
• Built-in prescaler with input amplifier (Fmax=1.0GHz)
• PLL lock/unlock status display out put(Built-in pull up resistor )
• X'tal 4MHz is used to realize 3 type of tuning steps(Division ratio 1/512, 1/640, 1/1024)
• Serial data input. (3 wire bus)
• Software and pin compatible with M64092/M64892
• Automatic switching of tuning step according to the number of data bits (62.5kHz at 18bits, 31.25kHz at 19bits)
• Built-in Power on reset system
• 16-pin small SOP/SSOP package

M64892AFP Typical Application

TV, VCR tuners

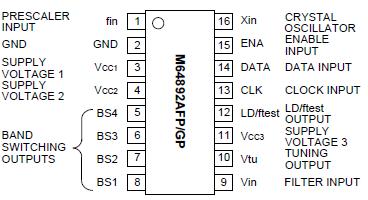

M64892AFP Connection Diagram

M64892AFP Connection Diagram

M64892AFP datasheet

M64892AFP
PDF/DataSheet Download

  • Datasheet: M64892AFP
  • File Size: 53655 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
