Part Number: M64894GP



MFG: MITSUBISHI

Package Cooled: TSOP

D/C: 98

Description: The M64894 is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR us...


Urgent Purchase

M64894GP General Description


The M64894 is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR using I2C BUS control.

 It contains the prescaler with operating up to 1.3GHz, 4 band drivers and tuning Amplifier for direct tuning. Built-in 4 band drivers.

M64894GP Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
Vcc1
 Super voltage1 Pin3
6.0
V
Vcc2
 Super voltage2 Pin4
14.4
V
Vcc3
 Supply voltage 3 Pin11
36.0
V
VI
 Input voltage Not to exceed VCC1
6.0
V
Vo
 Output voltage LD output
6.0
V
VBSOFF
 Voltage applied when the band output is
OFF
14.4
V
IBSON
 Band output current per 1 band output circuit
50.0
mA
tBSON
 ON the time when the band output is ON 50mA per 1 band output circuit
3circuits are pn at same time.
10
sec
Pd
 Power dissipation Ta=+75 °C
450(470)
mW
Topr
 Operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+125
°C

M64894GP Features

• 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)
• Built-in high-withstanding voltage tuning Amplifier
• Low power dissipation (Icc=20mA, Vcc=5V)
• Built-in prescaler with input amplifier (Fmax=1.3GHz)
• I2C bus control (Read and write mode)
• X'tal 4MHz is used to realize 3 type of tuning steps(Division ratio 1/512, 1/640, 1/1024)
• Built-in 5-level A/D converter
• Programmable chip address
• 16-pin small SOP/SSOP package

M64894GP Typical Application

TV, VCR tuners

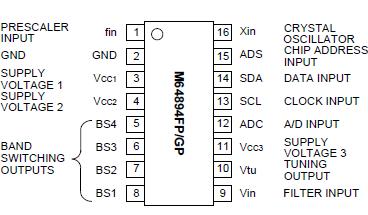

M64894GP Connection Diagram

M64894GP Connection Diagram
