Part Number: M64898GP



MFG: MITSUBISHI

Package Cooled: TSSOP

D/C: 2008+

Description: The M64898GP is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR /PC.

Urgent Purchase

M64898GP General Description


The M64898GP is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR /PC.

It contains the prescaler with operating up to1.3GHz,4 band drivers and DC-DC converter for Tuning voltage.

M64898GP Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
Vcc1
 Super voltage1 Pin3
6.0
V
Vcc2
 Super voltage2 Pin4
10.8
V
VI
 Input voltage Not to exceed VCC1
6.0
V
Vo
 Output voltage fREF output
6.0
V
VBSOFF
 Voltage applied when the band output is
OFF
10.8
V
IBSON
 Band output current per 1 band output circuit
40.0
mA
tBSON
 ON the time when the band output is ON 40mA per 1 band output circuit
3circuits are pn at same time.
10
sec
Pd
 Power dissipation Ta=75°C
255
mW
Topr
 Operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+125
°C

M64898GP Features

• Built-in DC-DC converter for Tuning voltage
• 4 integrated PNP band drivers(Io=30mA, Vsat=0.2V typ@VCC1 to 10V )
• Built-in prescaler with input amplifier (max=1.3GHz)
• PLL lock/unlock status display out put(Built-in pull up resistor)
• X'tal 4MHz is used to realize 3 type of tuning steps(Divider ratio 1/512, 1/640, 1/1024)
• Software compatible with M64892/M64893
• Automatick switching of tuning step according to the number of data bits (62.5kHz at 18bits , 32.25kHz at 19bits)
• Built-in Power on reset system
• Small Package(SSOP)

M64898GP Typical Application

PC, TV, VCR tuners

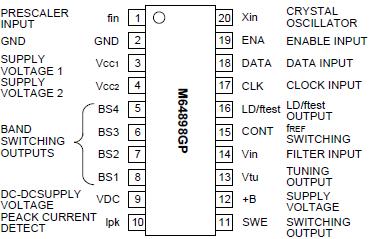

M64898GP Connection Diagram

M64898GP Connection Diagram

M64898GP datasheet

M64898GP
PDF/DataSheet Download

  • Datasheet: M64898GP
  • File Size: 63199 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
