Part Number: M66007FP
MFG: MIT
Description: The M66007 is a semiconductor integrated circuit providing the 12-bit parallel input-serial output shi...
- Table of contents:
M66007FP
-
Suppliers
DataSheet
General Description
M66007FP General Description
The M66007 is a semiconductor integrated circuit providing the 12-bit parallel input-serial output shift register function.This product is completely designed with CMOS to sharply reduce power consumption compared with bipolar or Bi-CMOS product.
The M66007, developed as an input only expander IC necessary for microcomputer periphery, is widely applicable as a data parallel/serial conversion IC.
M66007FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| VCC | Supply voltage |
0.5 ~ +7.0 |
V | |
| VI | Input voltage |
0.5 ~ VCC + 0.5 |
V | |
| VO | Output voltage |
0.5 ~ VCC + 0.5 |
V | |
| IIK | Input protection diode current | VI<0V |
-20 |
mA
|
| VI>VCC |
20 | |||
| IOK | Output incidental diode current | VO<0V |
-20 |
mA
|
| VO>VCC |
20 | |||
| ICC | Power/GND | VCC.GND |
±20 |
mA |
| Tstg | Storage temperature |
60 ~ +150 |
M66007FP Features
• Control signals of only two pins including LE/D and CLK
• Low power consumption of 50 W/package maximum (Vcc=5V, Ta=25°C at time of standstill)
• Schmitt triggered input (LE/D, CLK, D0 to D11)
• Wide operating supply voltage range (Vcc=2~6V)
• Wide operating temperature range (Ta=20~75°C)
• Low power consumption of 50 W/package maximum (Vcc=5V, Ta=25°C at time of standstill)
• Schmitt triggered input (LE/D, CLK, D0 to D11)
• Wide operating supply voltage range (Vcc=2~6V)
• Wide operating temperature range (Ta=20~75°C)
M66007FP Typical Application
Parallel/serial data conversion for microcomputer peripher

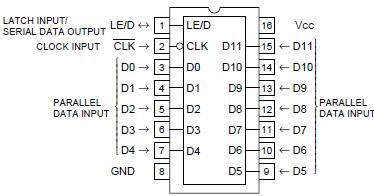

M66007FP Connection Diagram
M66007FP
PDF/DataSheet Download
- Datasheet: M66007FP
- File Size: 71769 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
